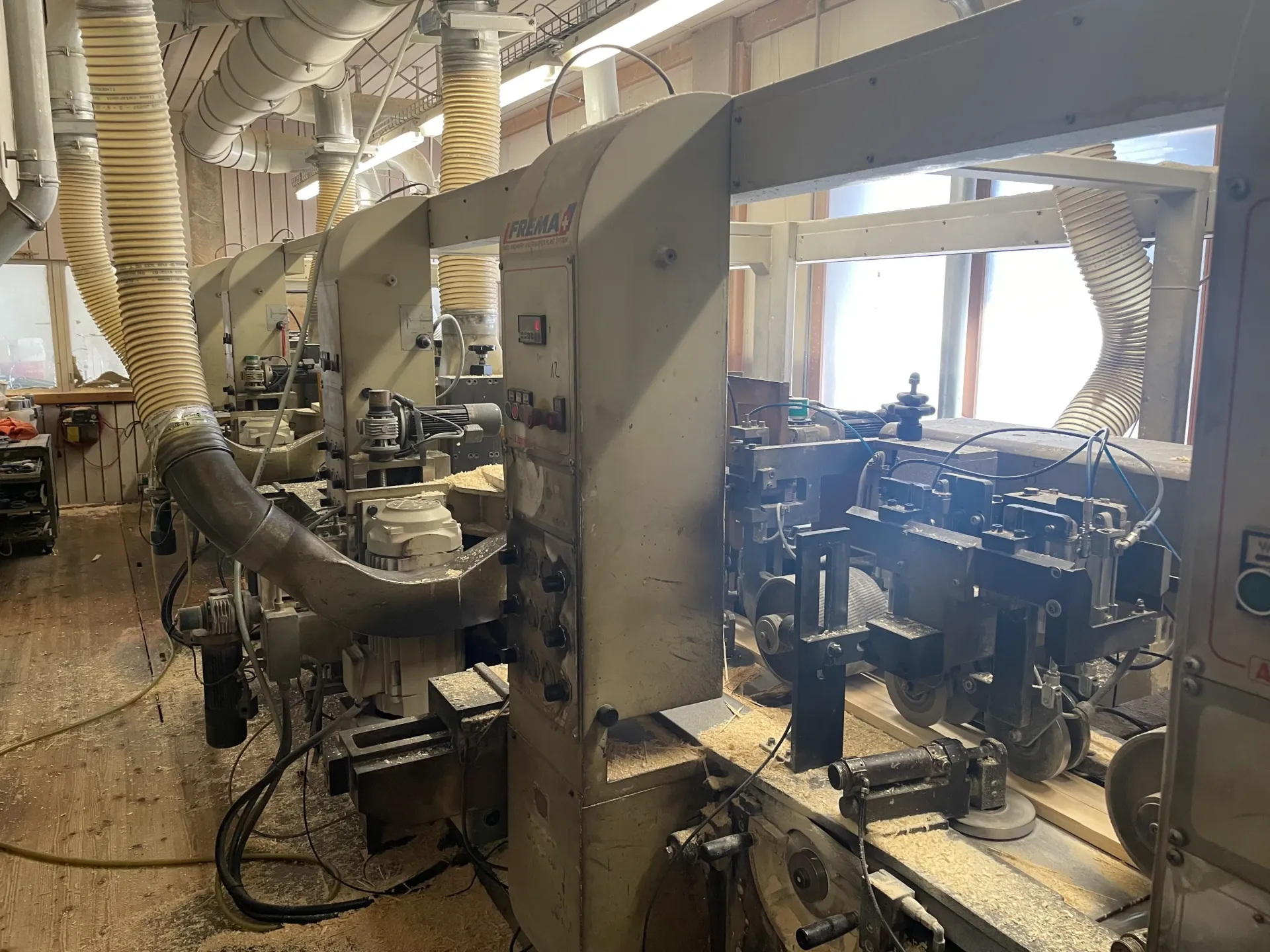

Costa Hobelmaschine

High-performance profile planer – machining center with 10 spindles, used exclusively for processing spruce wood.
Technical features:

Working width up to 300 mm
Multiple-stroke spindle system for flexible profiling and dimensional machining
Feed speed: 140 m/min to 200 m/min

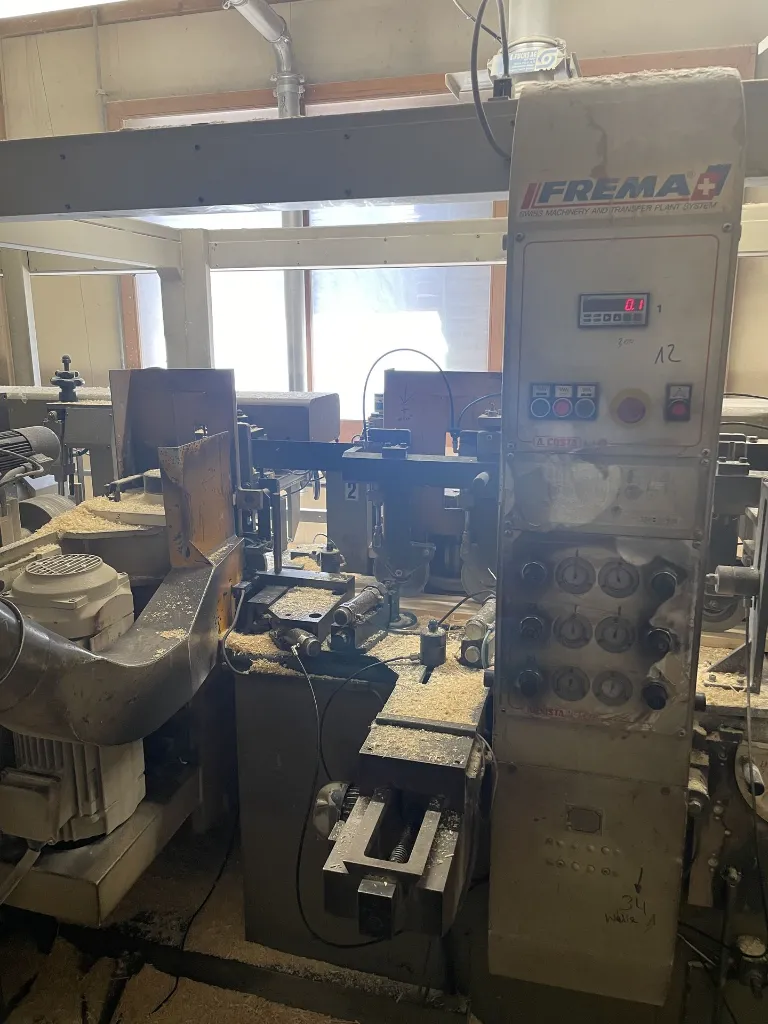

NC control for precise, repeatable setup and machining processes
All spindles equipped with support bearings (hydraulic clamping) for smooth running, dimensional accuracy, and high surface quality
Planing table in fully proper condition, with no visible signs of wear or damage
Dimensionally and angularly accurate machining across the entire working width
The machine is in technically flawless condition and operates precisely and reliably

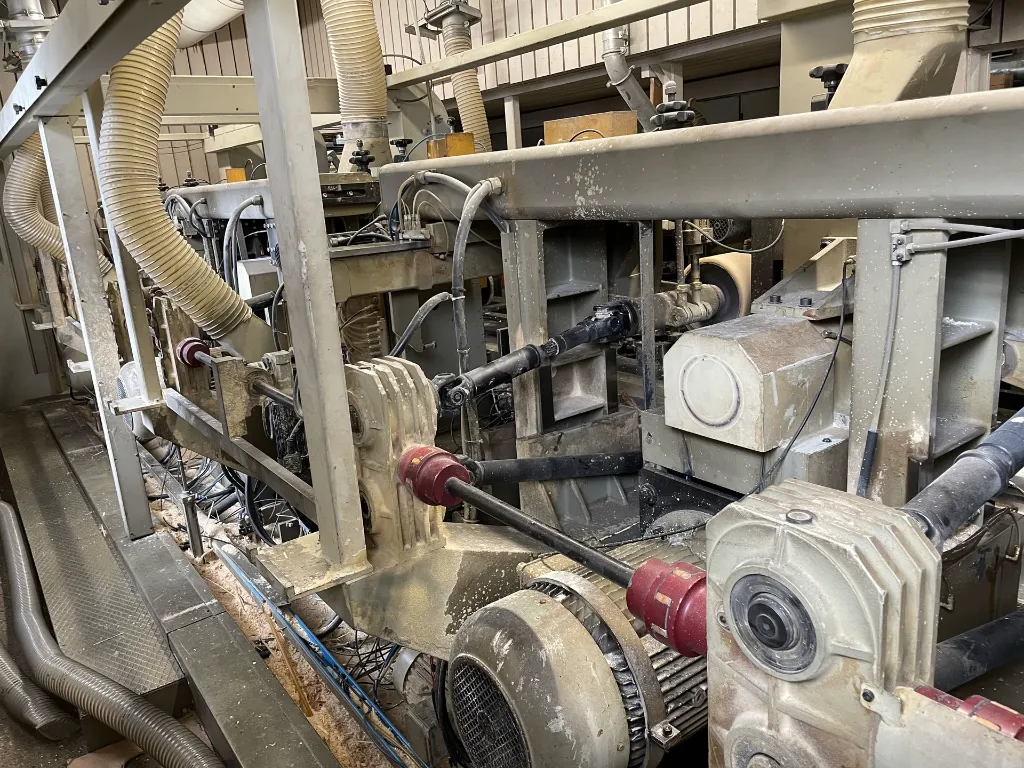

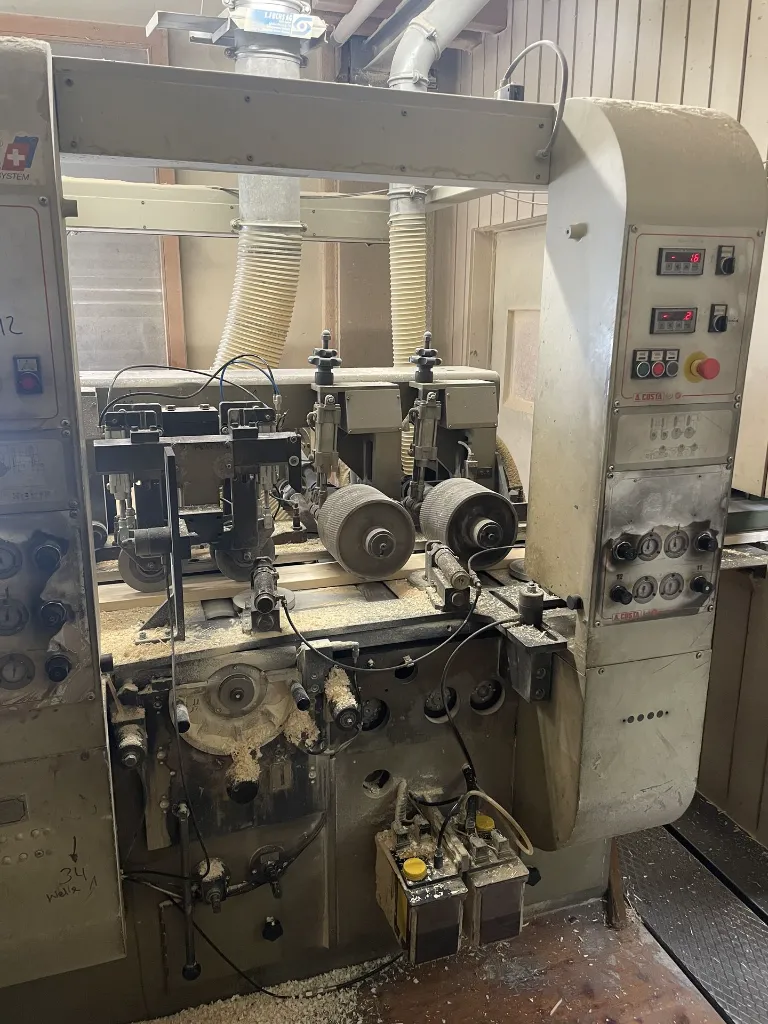

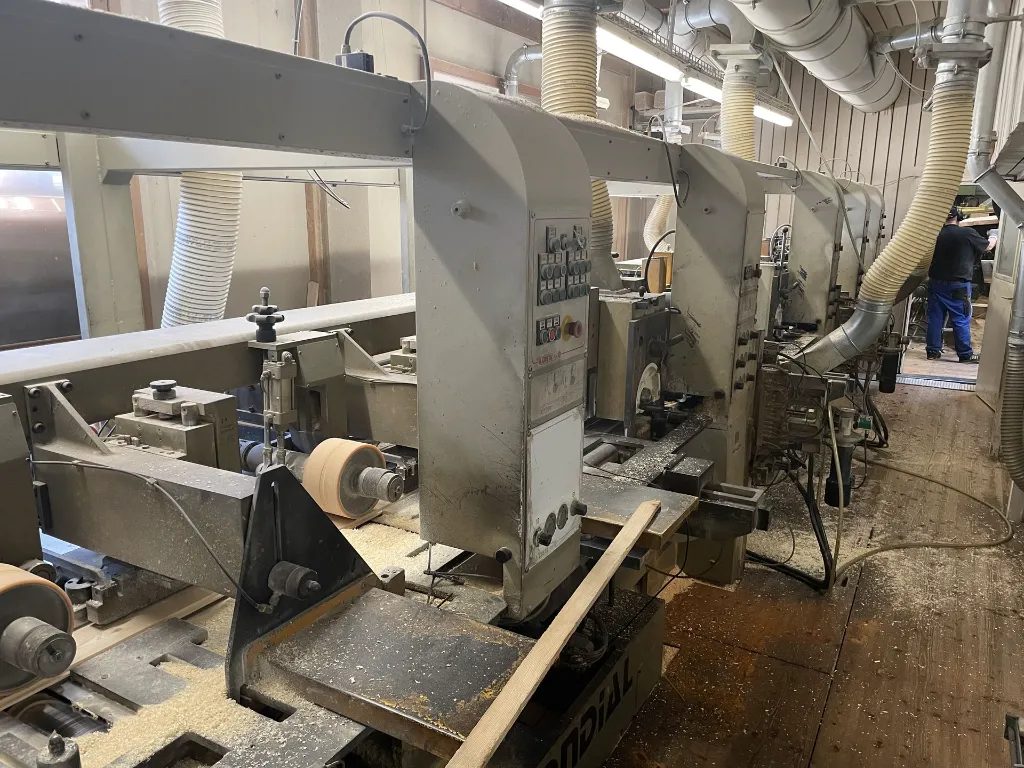

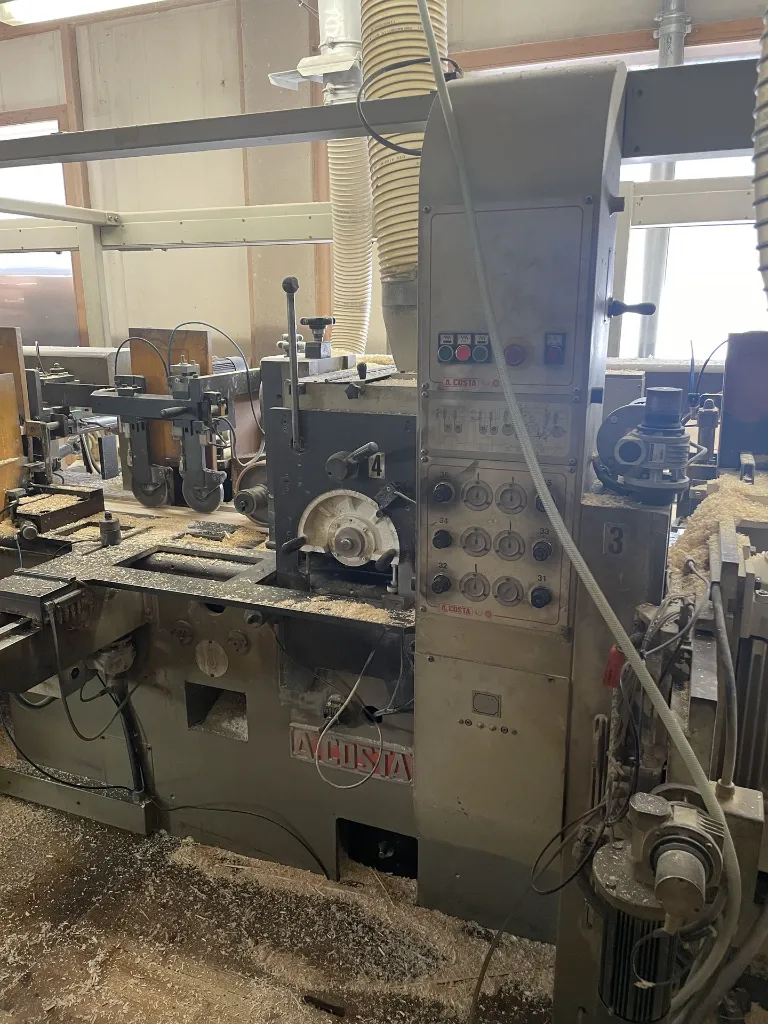

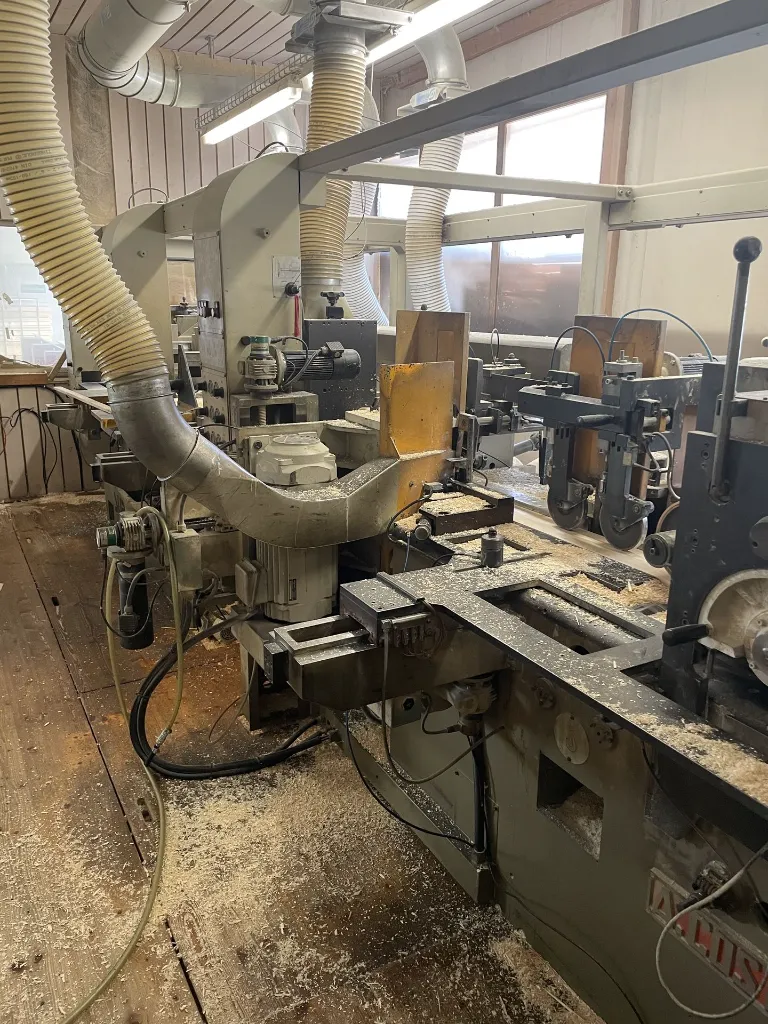

Spindle configuration:
Horizontal spindle
Right vertical stroke spindle
Left vertical stroke spindle
Horizontal stroke spindle
Right vertical stroke spindle
Left vertical stroke spindle
Top horizontal spindle
Bottom horizontal spindle
Bottom horizontal spindle
Bottom horizontal jointing spindle
This spindle arrangement enables complete machining of the workpieces in a single pass while maintaining high dimensional accuracy and surface quality
