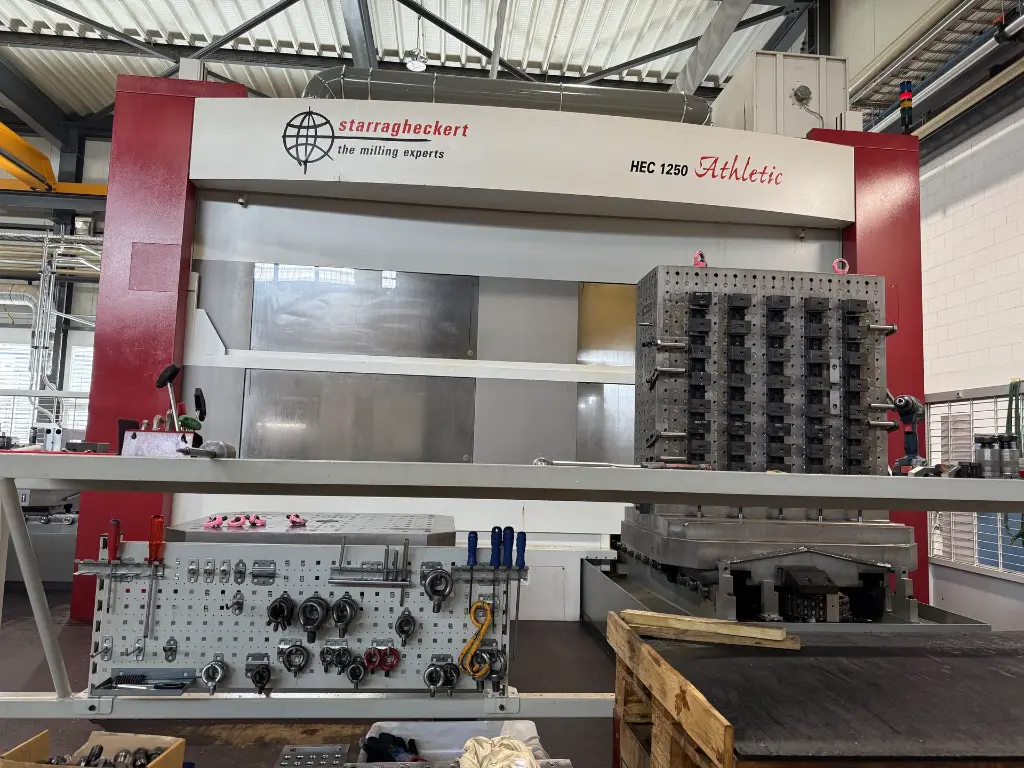

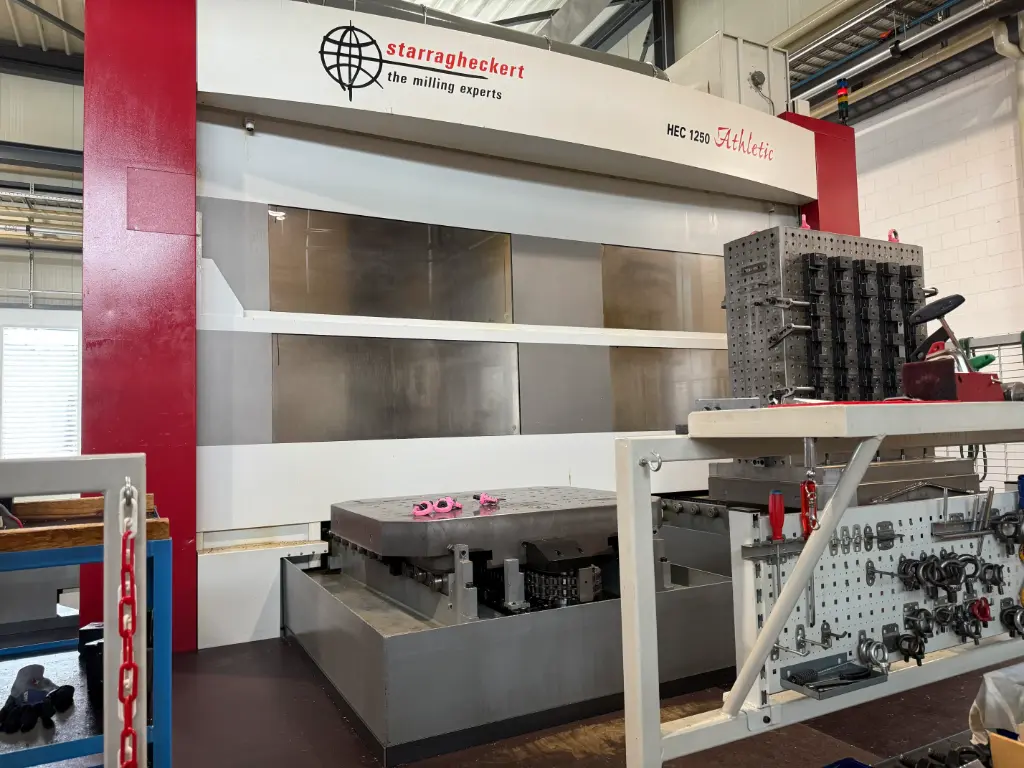

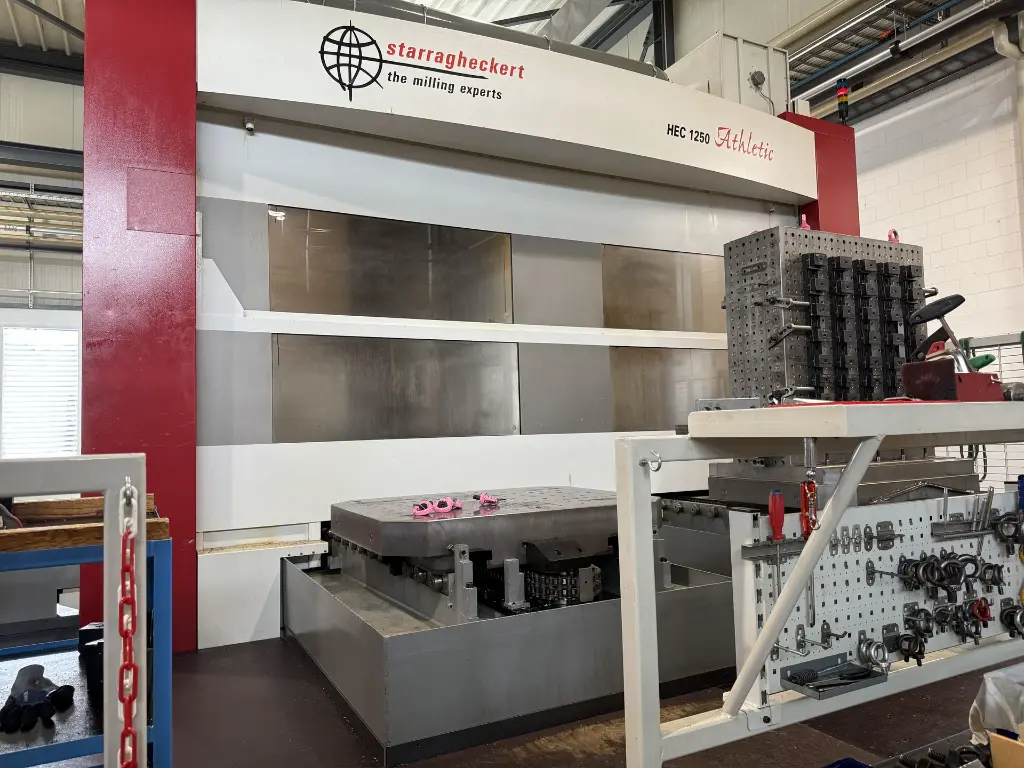

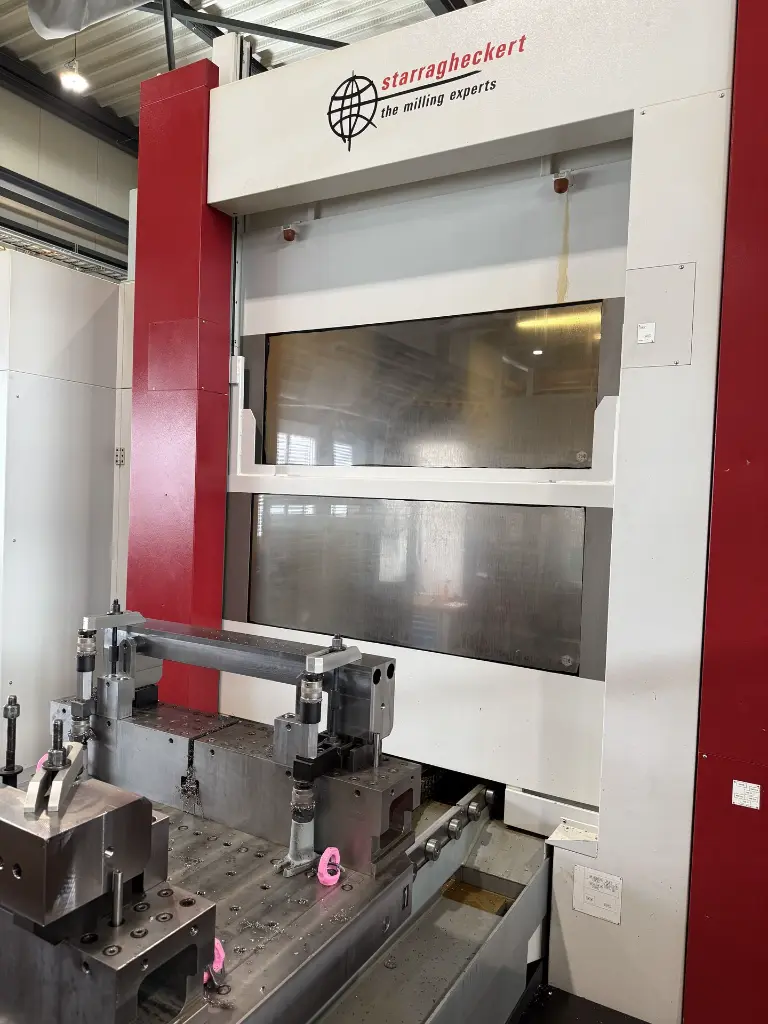

Machining Center – Technical Main Data (Short Version)
General Data
-
Weight (without options): approx. 41,700 kg
-
Color scheme: Light grey RAL 7035 / Mouse grey RAL 7005 / Ruby red RAL 3003
-
Operating voltage: 400 V / 50 Hz
-
Documentation: German
-

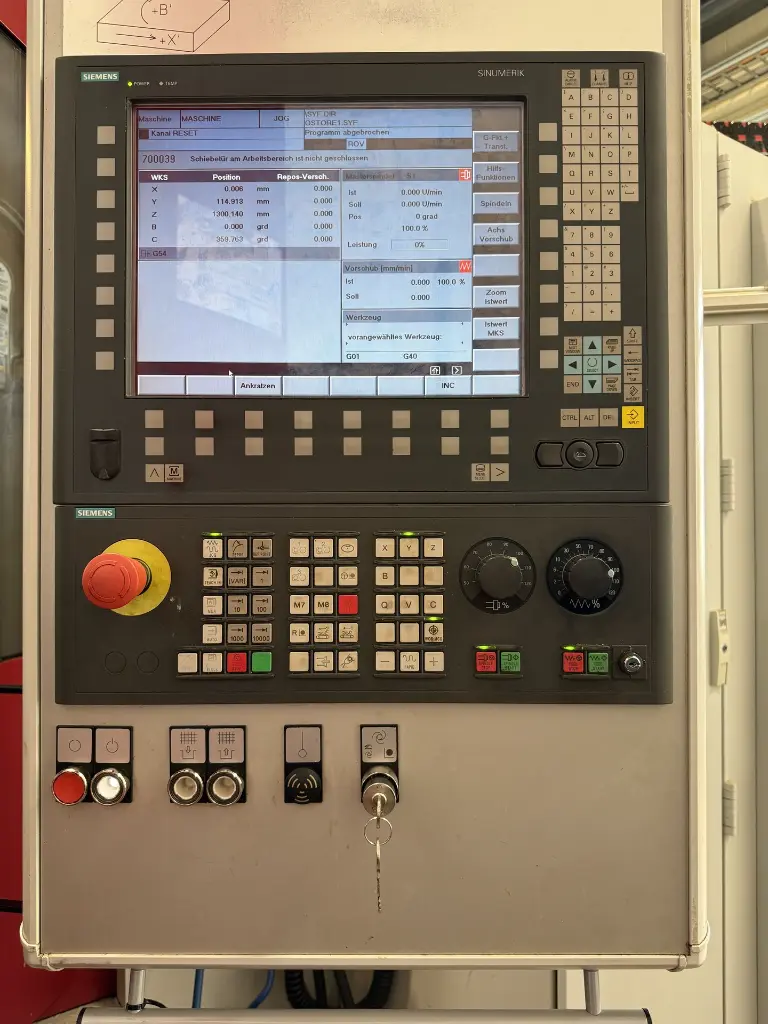

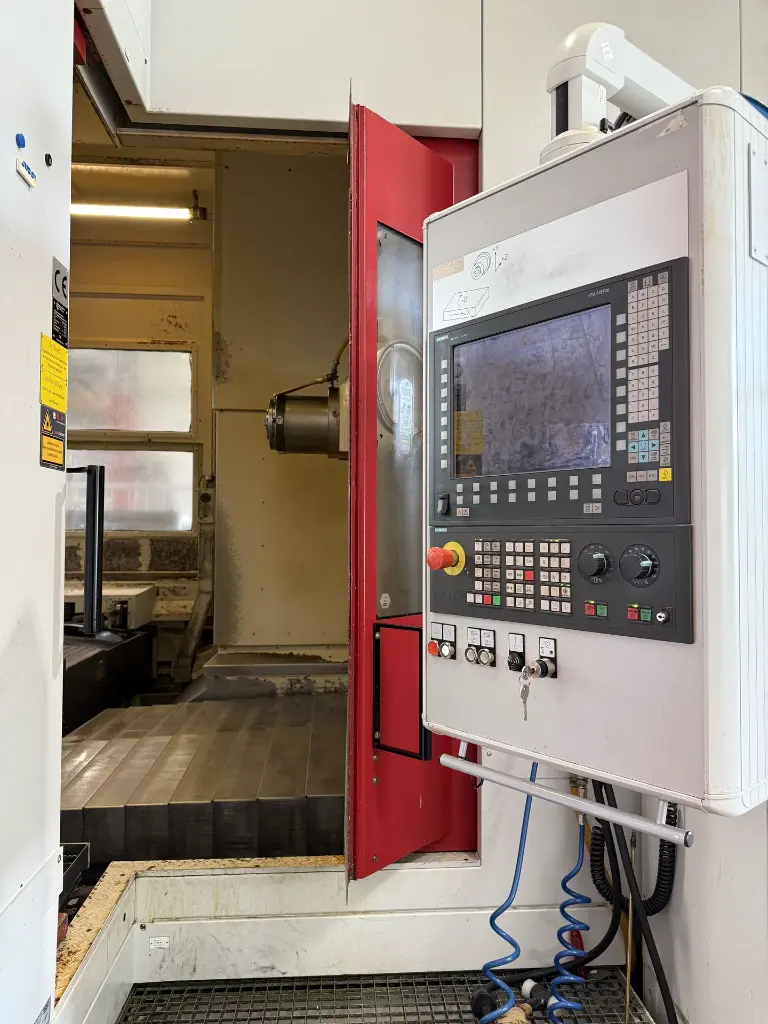

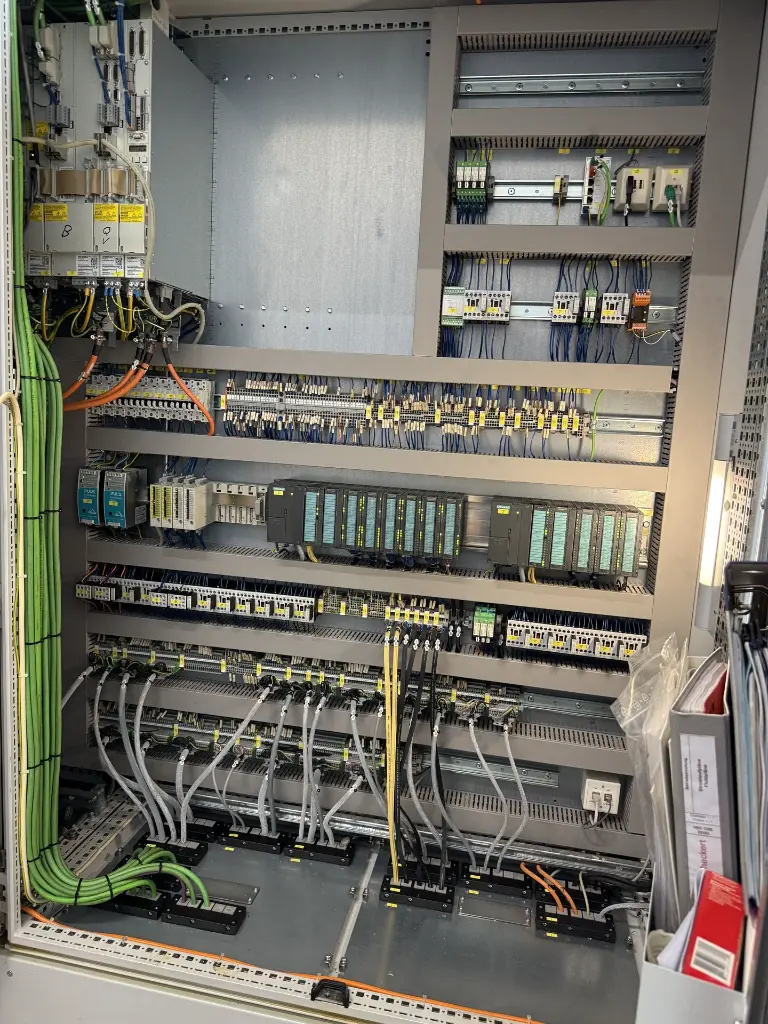

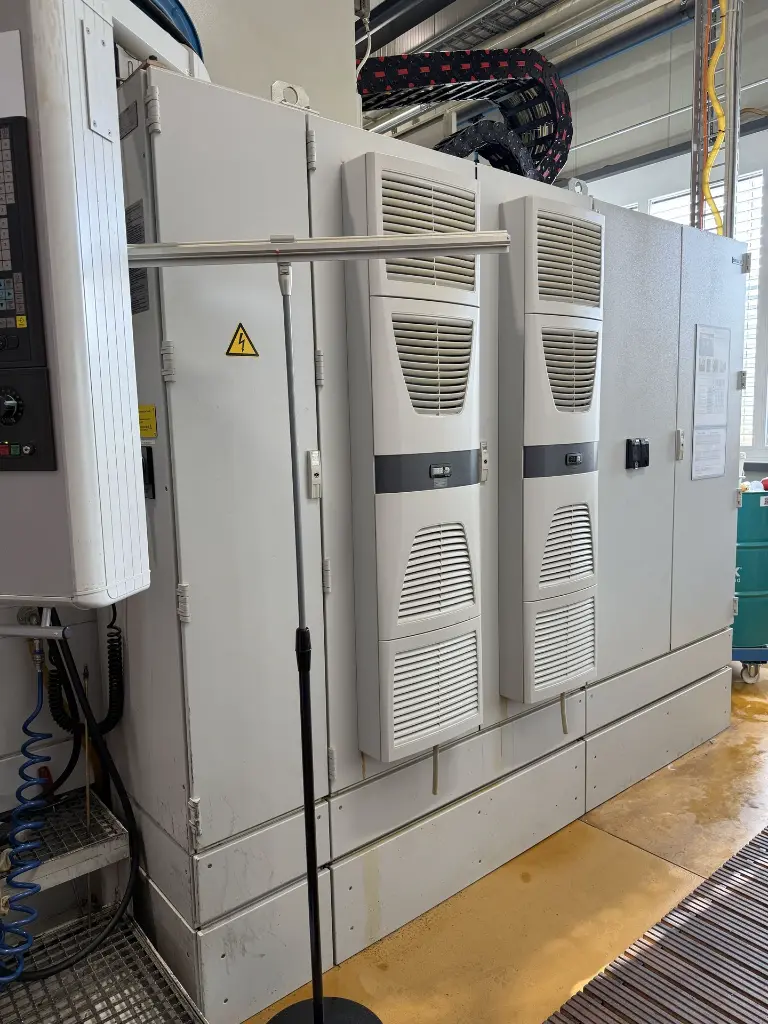

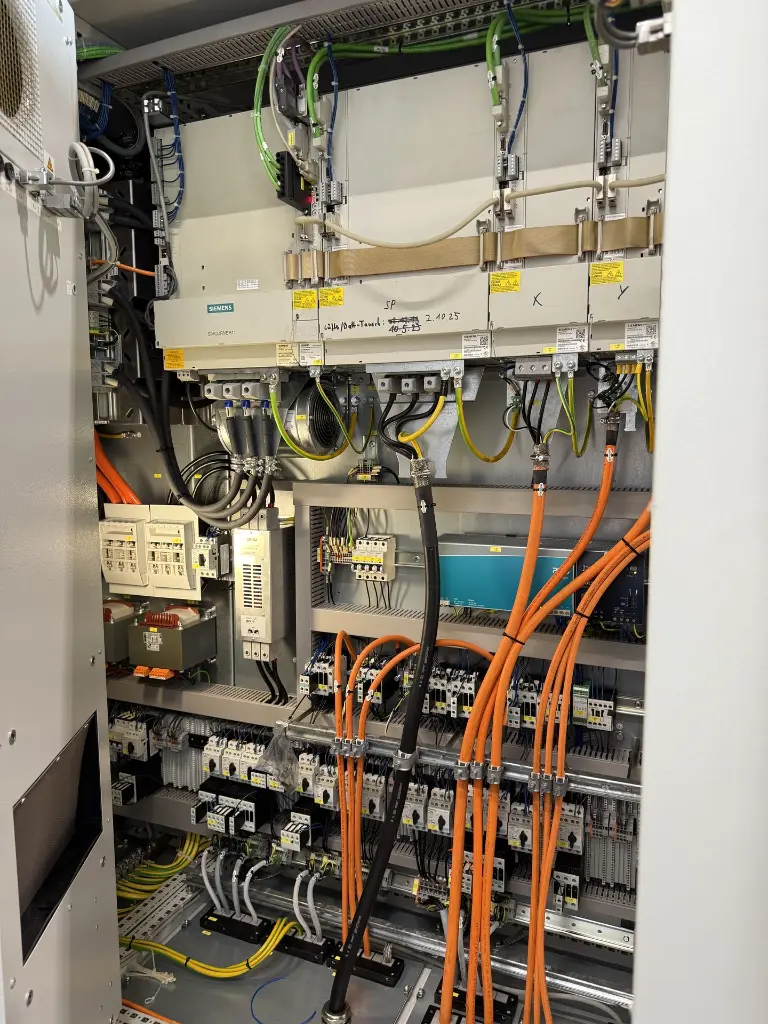

Control system: Sinumerik 840D
-
Renishaw touch probe interface
-
Tool breakage monitoring
Axes and Machining Dimensions
-
X-axis: 2200 mm
-
Y-axis: 1600 mm
-
Z-axis: 1850 mm
-
Pallet size: 1250 × 1000 mm
Travel Paths & Feed Rates
-
Infinitely variable working feed range: 1–40,000 mm/min
-
Rapid traverse: 40 m/min
-
Acceleration (X/Y/Z): 4 / 5 / 3 m/s²
-
Maximum feed forces: 20 kN

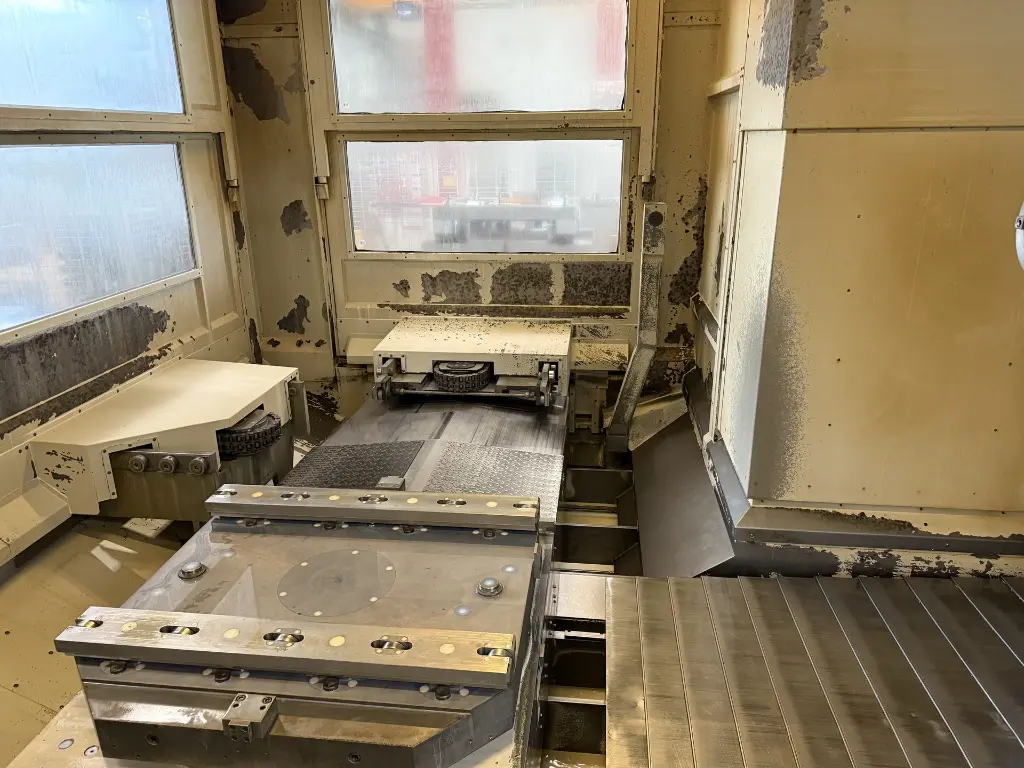

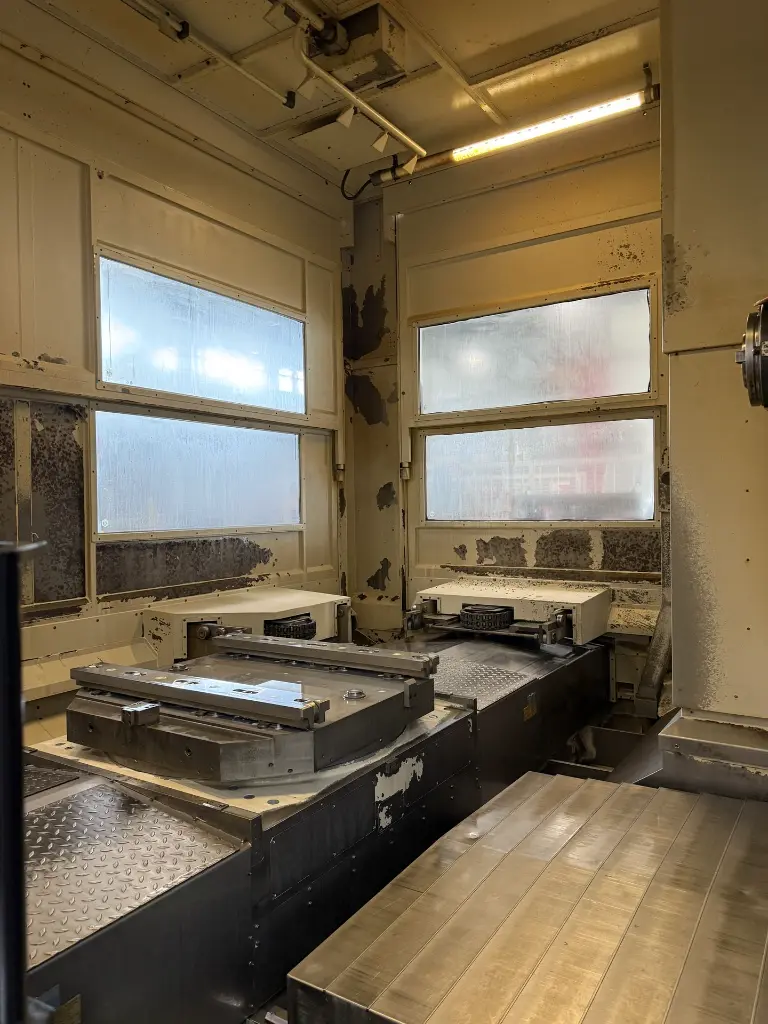

Workpiece Clamping & Table
-

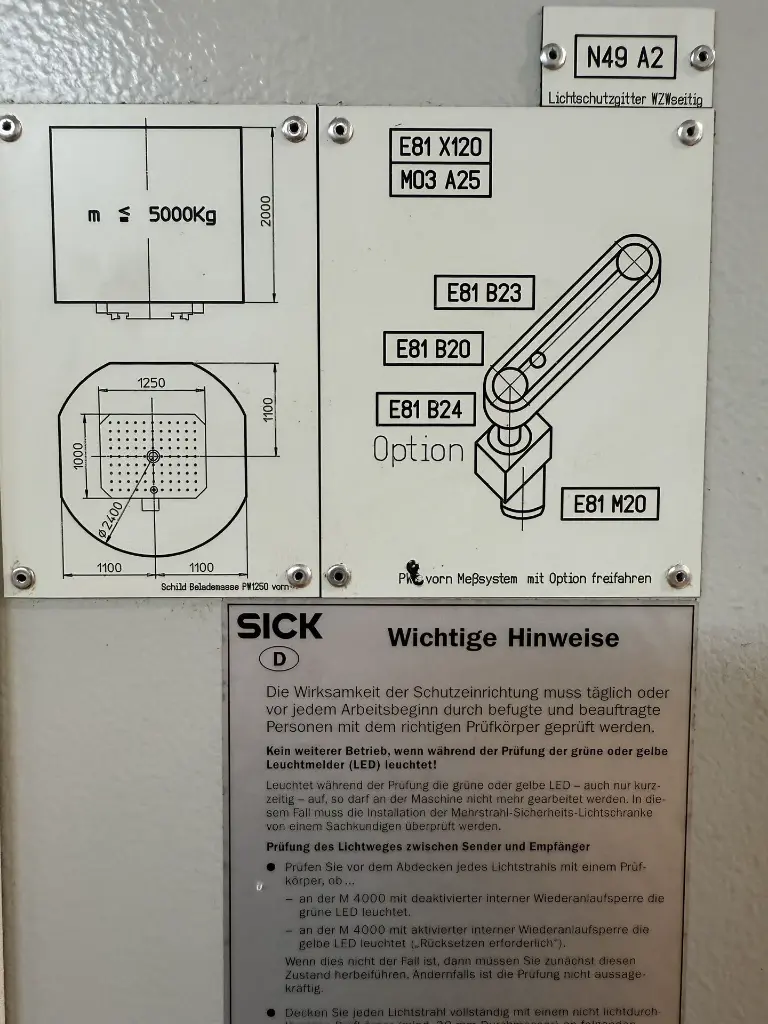

Pallets according to DIN 55201, maximum load capacity 5,000 kg (centered)
-
Maximum tilting moment (from top of pallet): 50,000 Nm
-
Rotary table:
-
Speed: 10 rpm
-
Resolution: 0.001°
-
Tangential torque (clamped): 25,000 Nm

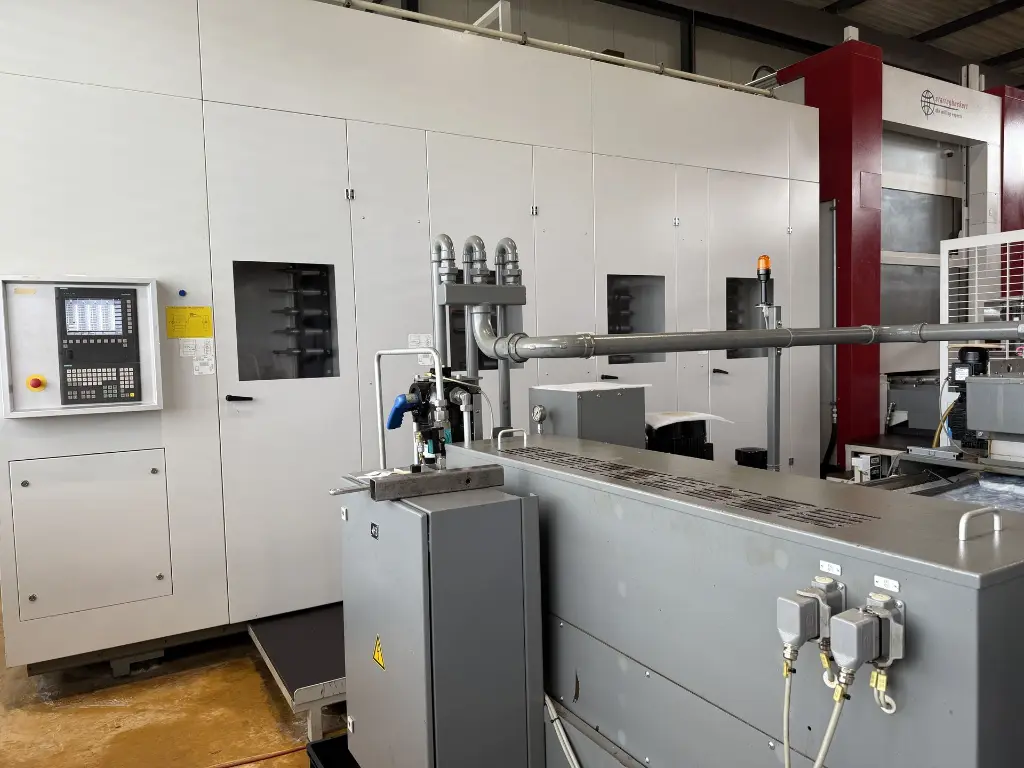

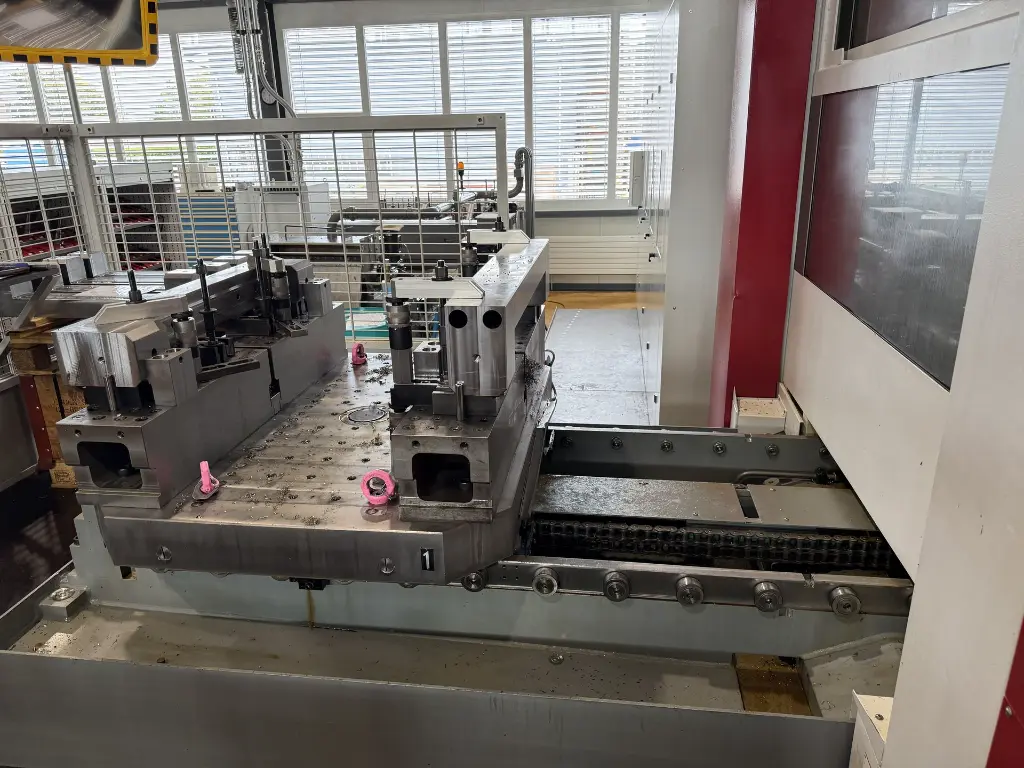

Pallet & Tool Change
-
Automatic pallet changer for 3 pallets, change time: 47 s
-
Automatic tool changer, chip-to-chip time: 13 s
-

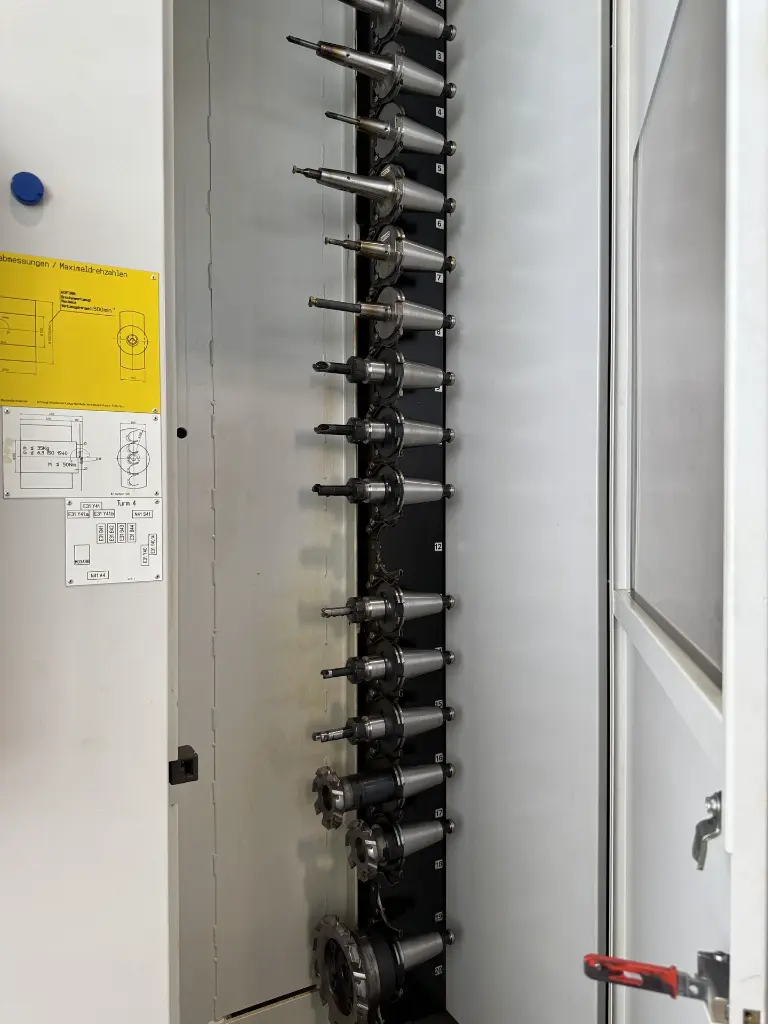

Tower magazine with 320 tool stations (4 towers):
-
Max. tool diameter: 250 mm (with adjacent pockets occupied Ø 110 mm)
-
Max. tool length: 450 mm
-
Max. tool weight: 35 kg

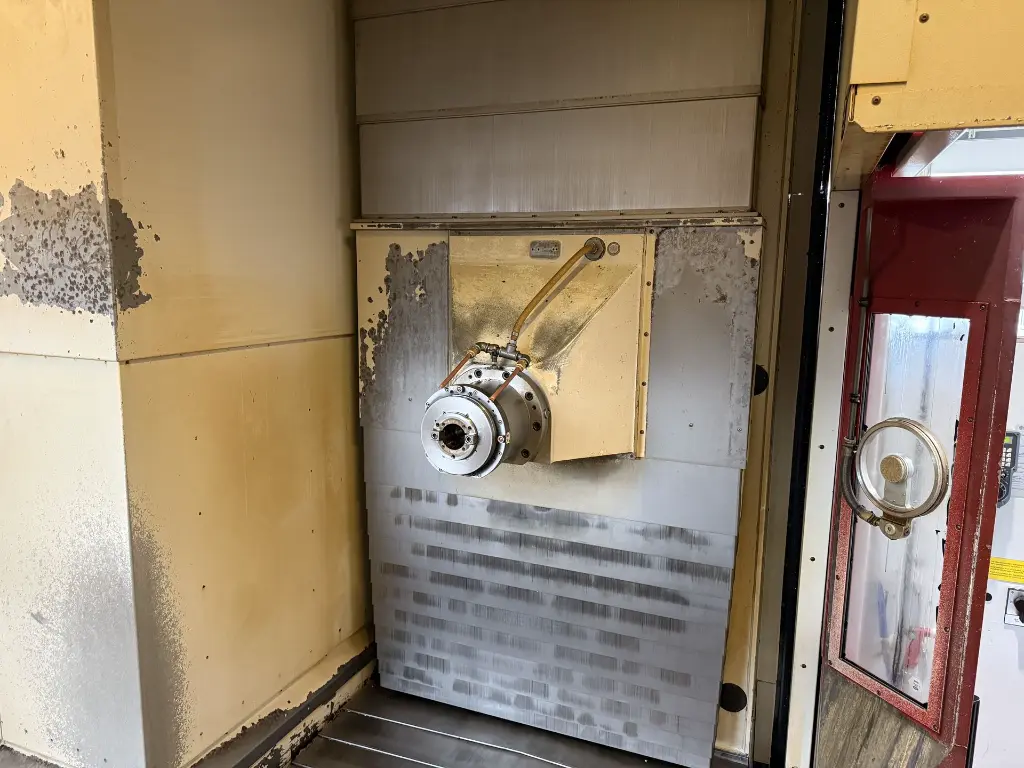

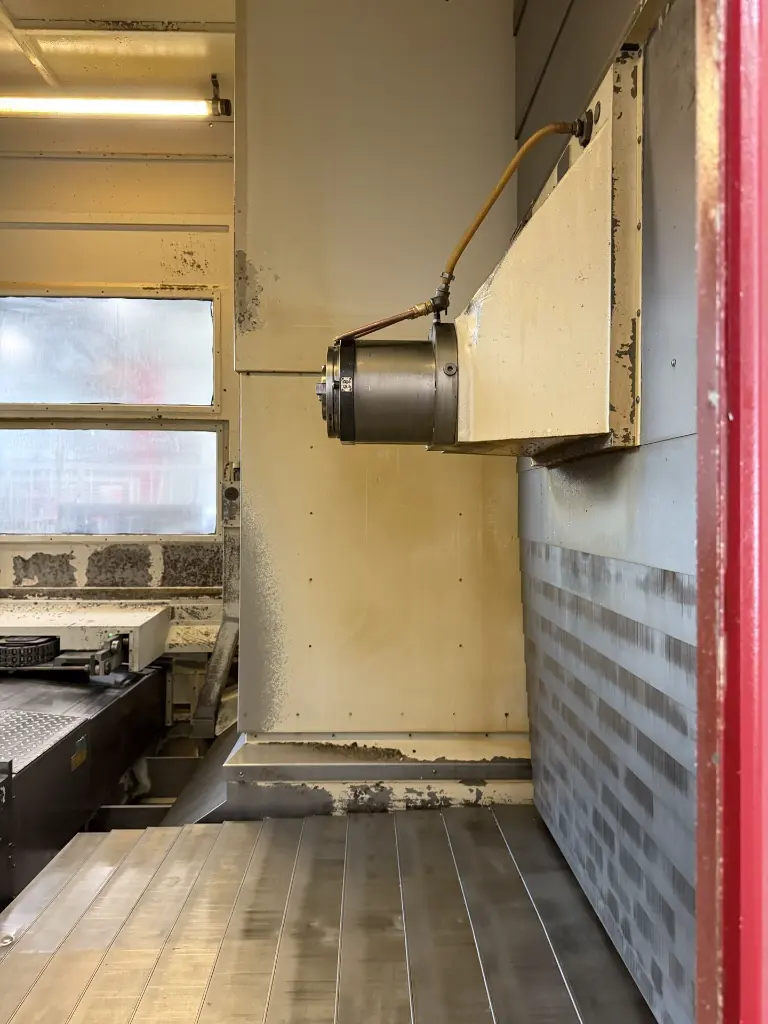

Working Spindle (Horizontal)
-
Spindle diameter: 200 mm
-
Speed range: 20–10,000 rpm (2-stage high-precision gearbox)
-
Tool interface: SK50 (DIN 69871)
-
Through-spindle coolant supply: max. 70 bar
-
Spindle drive power:
-
28 kW at 100% duty cycle (ED)
-
50 kW at 25% duty cycle (ED)
-
Spindle torque:
-
732 Nm at 100% duty cycle (ED)
-
958 Nm at 25% duty cycle (ED)
-
Artis tool and process monitoring system

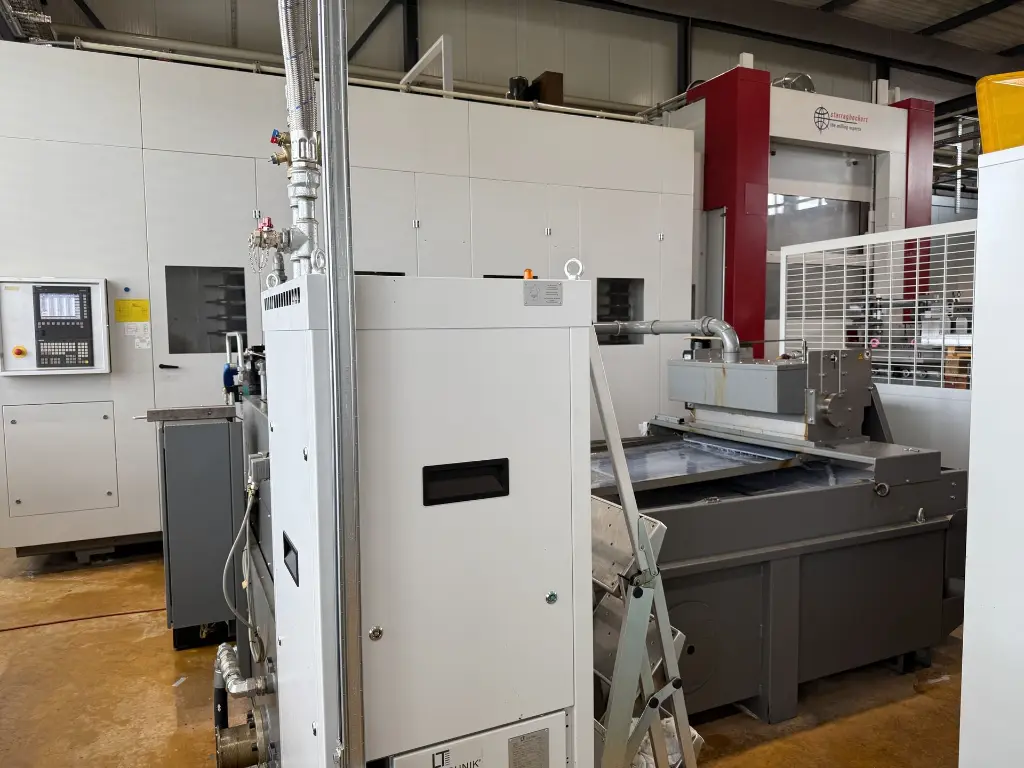

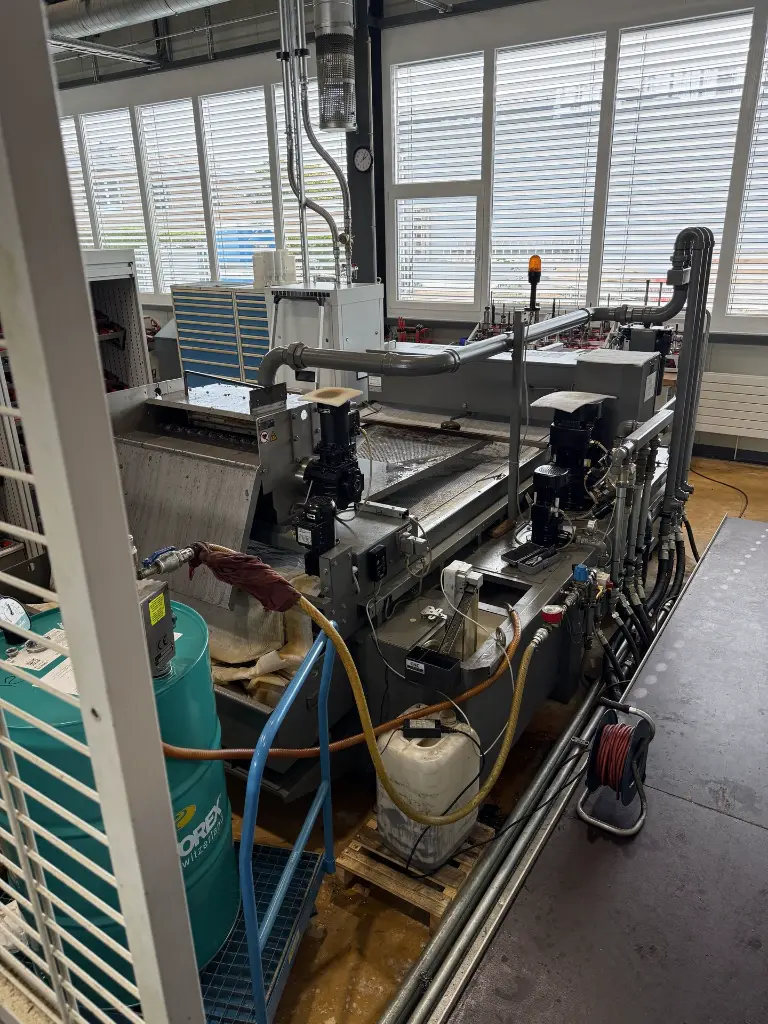

Coolant System
-
Coolant unit with backflush filter
-
Delivery pressure: 10–70 bar (switchable via M command)
-
Tank volume: approx. 2,500–3,000 l
-
Temperature stabilization and compensation for high dimensional accuracy
-
Scraper belt chip conveyor
Performance & Accuracy
-
Continuous power requirement: according to installation plan
-
Positioning uncertainty (X/Y/Z): Tp = 0.008 mm
-
Positioning deviation (Pa): 0.006 mm
The machine can be inspected and tested under power at any time.
