Krüsimatic G2

Joinery Center  Krüsimatic G2 – Used, completely overhauledt

Price: 480`000CHF

Condition & Revision

The machine has been completely overhauled by Krüsi Maschinenbau AG. It receives a new control system, regulators, servomotors, and wiring – with a 12-month warranty on mechanics and new components..

 Technical Data

  • Pass-through dimension wood: max. 200 x 320 mm
  • Insertion length: 10,000 mm
  • Pull-out length: 10,000 mm
  • Supply voltage: 3 x 400 V / 50 Hz
  • Protection: 3 x 63 A (site-installed)
  • Pneumatic pressure: ≥ 8 bar
  • Air requirement: 10 – 15 m³/h

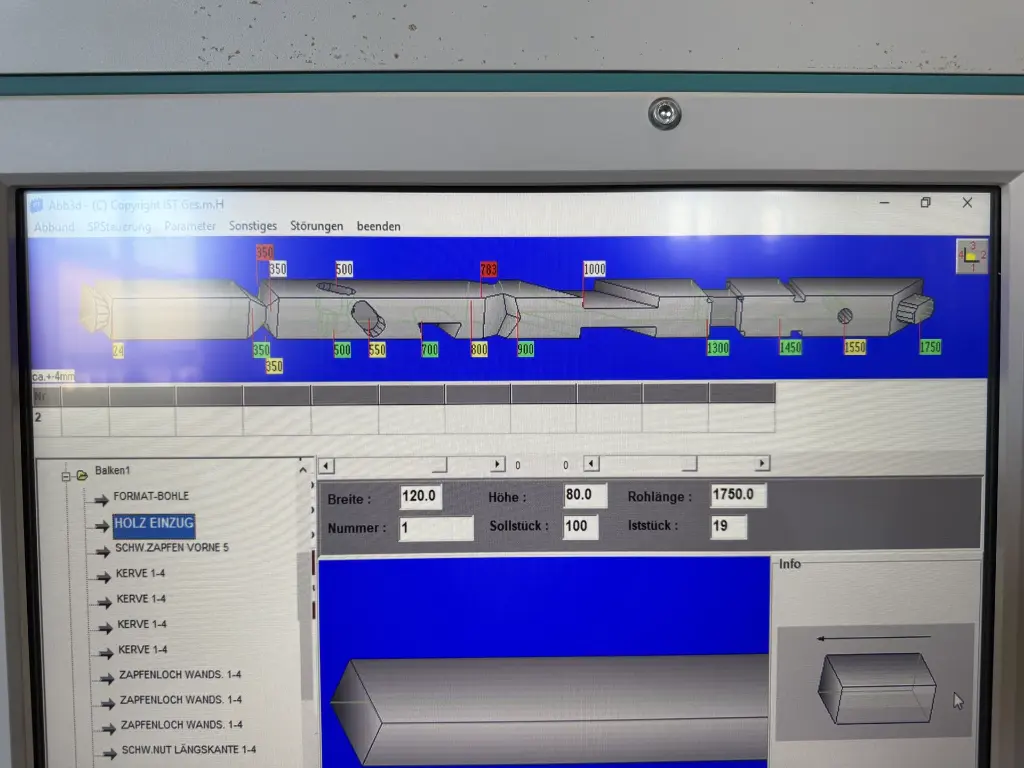

  • Machine Control: IST Software / Abb3d
  • Interface: BTL-compatible

 Processing units

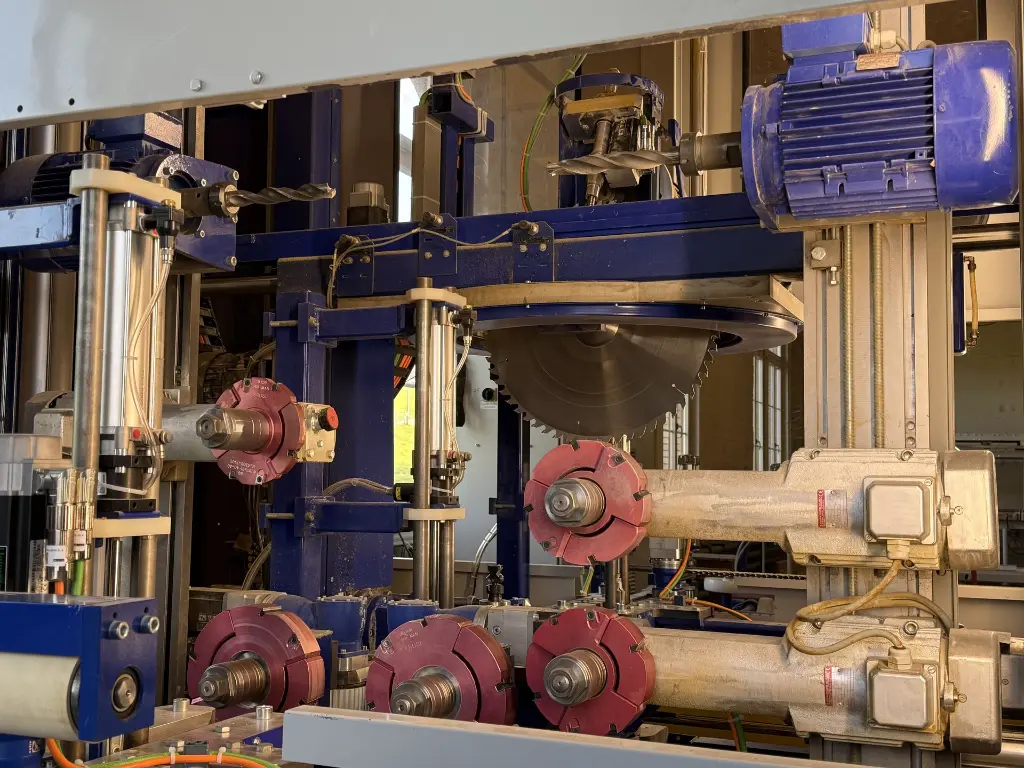

Gate 1:

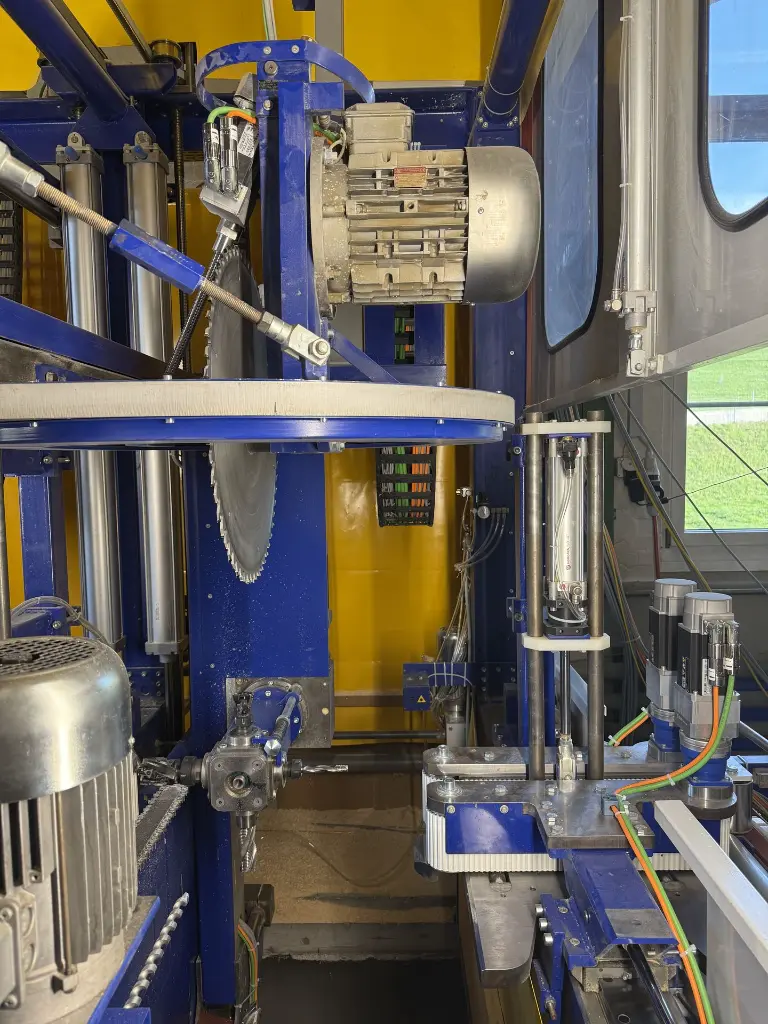

  • 5-Axis Saw Unit (angle-limited)
  • 4-axis milling unit with 5-fold spindle head (horizontal) + marker
  • 4-axis groove unit with dual spindle head (vertical))
  • Drilling unit with two horizontal tool holders
  • Chain mortising unit

Gate 2:

  • Two chalet milling motors (vertical)
  • Two chalet milling motors (horizontal)
  • Two drilling rigs (horizontal)
  • Grooving milling unit (horizontal & vertical)

 Accessories

  • Extensive tool equipment included
  • Two air pressure tanks for weight relief of the gates

 The opportunity for carpentries, timber construction companies, and prefabrication centers that rely on reliability and precision – with factory warranty

 Place:

KM79-G2_V0.pdf

CHF 0,00 CHF 0,00

Angebot auf Anfrage

  • Hersteller
  • Model / Typ
  • Baujahr
  • Zustand
  • Funktionsfähigkeit:

Diese Kombination existiert nicht.

Kontaktieren Sie uns
Hersteller: Krüsi Maschinenbau AG
Model / Typ: Krüsimatic G2
Baujahr: 2006
Funktionsfähigkeit:: Vollständig funktionsfähig
