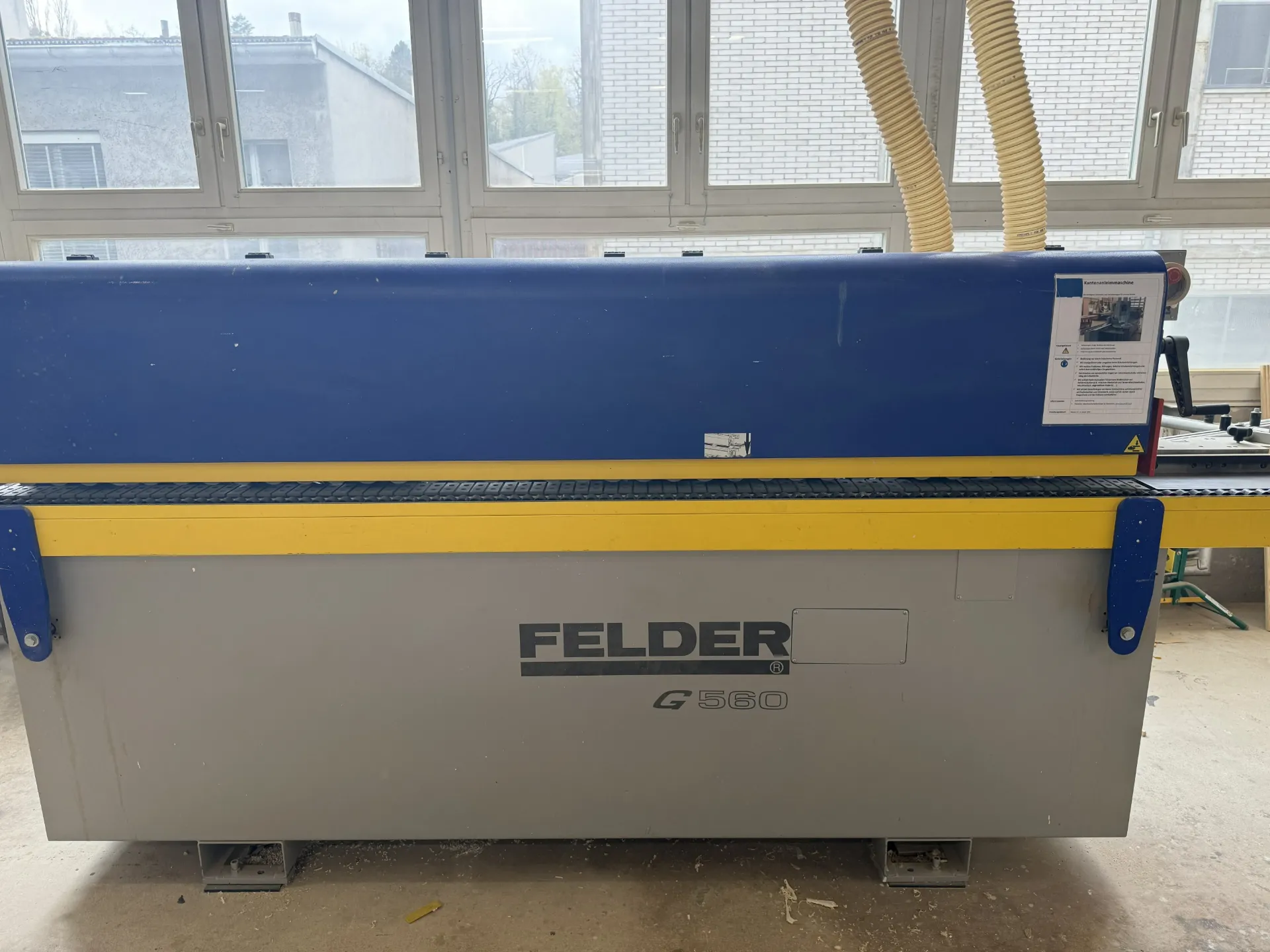

Felder MG560 edge banding machine

Edge banding machine with jointing and corner rounding unit

A very well-equipped and barely used edge banding machine with a robust design, ideal for precise and efficient edge finishing in the craft sector

 Features:

• Joining unit with 2 counter-rotating diamond cutters
• Edge feeding for roll and strip material
• Glue unit with glue roller
• Pre-cutting unit (roller)
• Printing unit for optimum contact pressure
• Trimming unit with a pulling cut
• Flush and radius milling unit
• Corner rounding unit for front edges
• Radius scraper unit
• Flat scraper
• Polishing unit
• Manual unit adjustment
• Control panel with LCD display and keypad
• Extendable workpiece support

Technical specifications:

• Edge thickness: 0.4–5 mm
• Workpiece height: 8–60 mm
• Minimum workpiece width: 70 mm
• Minimum workpiece length: 140 mm
• Feed rate: 11 m/min
• Exhaust connection: 120 + 2 × 80 mm
• Weight: approx. 990 kg
• Approx. dimensions (L × W × H): 4550 × 1550 × 1100 mm
