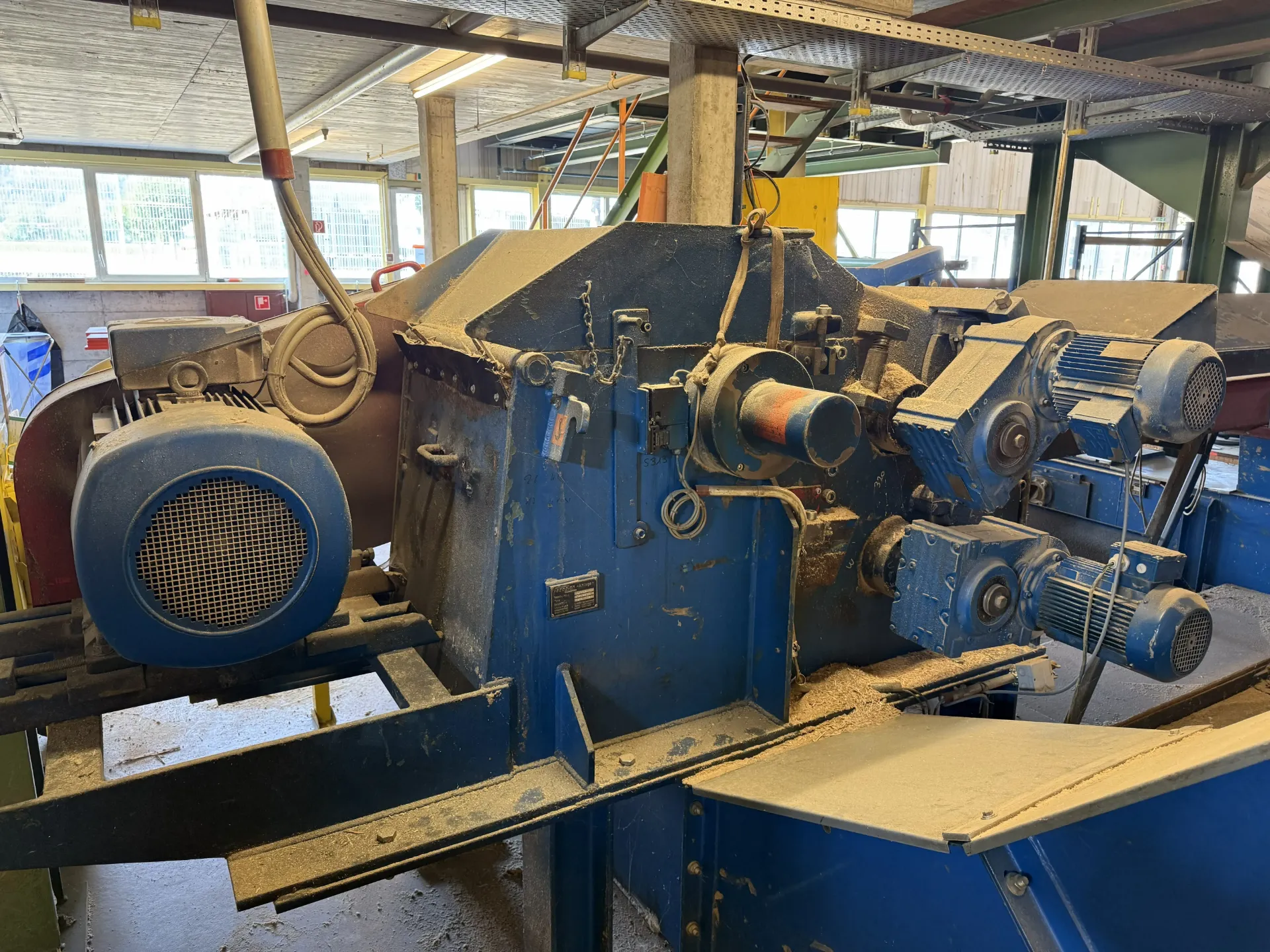

At the heart of this waste disposal plant is a high-performance Vecoplan drum shredder, type 55/18/3. The plant handles the fully automatic shredding and processing of wood shavings, offcuts, wood waste and bark from sawmill production. All material streams are automatically collected, processed and fed into the respective discharge systems – ensuring cost-effective and continuous production operations
Highlights
-
High-performance Vecoplan drum shredder 55/18/3
-
Continuous shredding of wood waste, bark and wood chips
-
Robust industrial design for multi-shift operation
-
Integrated metal detection to protect the machine
-
Vibrating screen with separation into four material fractions
-
Automatic feeding of wood chips, sawdust and bark
-
Scraper conveyors and vibrating chutes for a continuous flow of material
-
Complete electrical control system, including system cabling
Key technical specifications
-
Drive power: 55 kW
-
Feed opening: 550 × 180 mm
-
Rotor diameter: 600 mm
-
Rotor speed: 730 rpm
-
Throughput: up to 10 cubic metres per hour
-
Wood chip length: approx. 25 mm
-
Screen hole diameter: 30 mm
-
Vibrating screen: 3 screening levels
-
Waste sorting: 4 categories
A detailed description of the system and all its components can be found in the attached PDF file.
