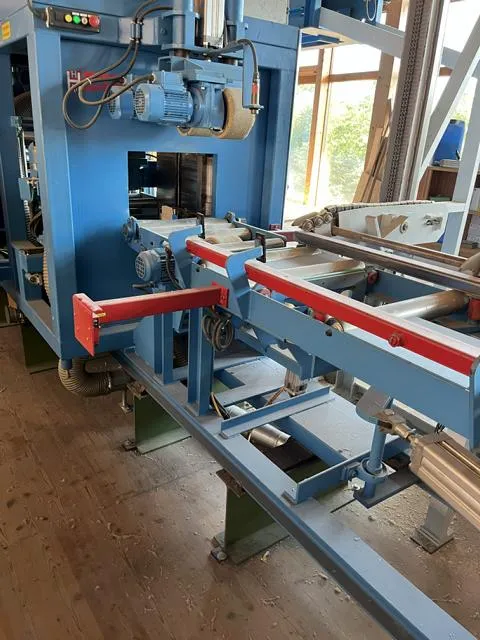

The HUNDEGGER planing line is designed for the fully automatic four-sided planing of structural timber and can be integrated directly into a joinery line or Speed-Cut system. Cross-section detection, automatic parameter transfer and load-dependent feed control enable a continuous production process without the need for manual changeovers.
Technical Specifications
- Working width: 30–400 mm
- Working height: 15–300 mm
- 4-sided machining up to 300 mm
- 4 planing spindles (2RL2UO)
- 4 × 7 kW planer motors
- 4 × 1.1 kW generator sets
- Continuously variable feed rate 0–22 m/min
- 7 feed drives, each rated at 0.37 kW

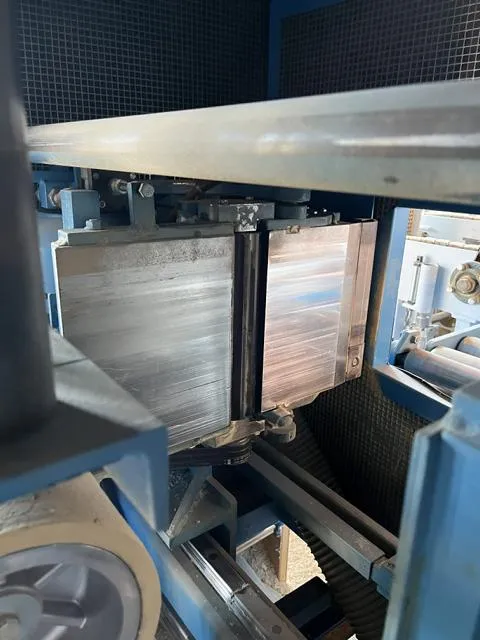

- TERSA horizontal and vertical planing shafts
- Weight: approx. 4,000 kg
Specifications
- Automatic cross-section detection and thickness adjustment
- Automatic transfer of planing parameters from joinery and CAD systems
- Process-controlled feed rate based on the spindle load
- Contour detection for pre-bonded components
- Full or partial planing without presetting
- Working with crooked and twisted timber
- Two-sided loading and unloading
- Timber lengths from 1,000 mm
- Soundproof booth (76 dB(A))

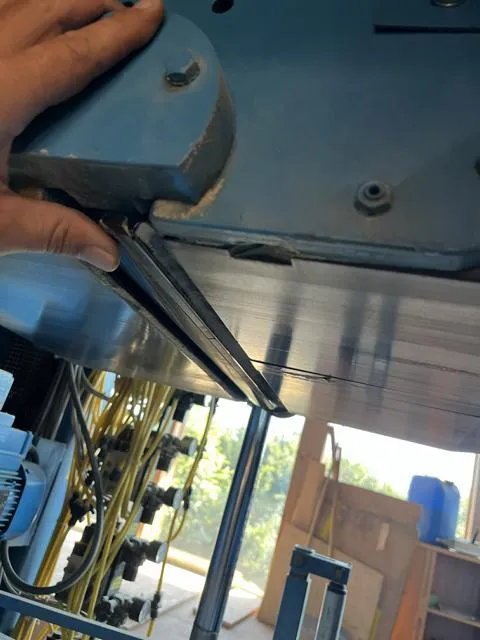

- TERSA planing shafts with tool-free blade change

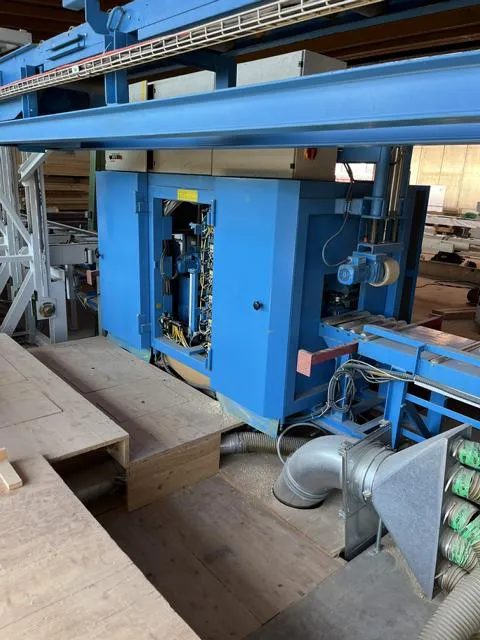

Soundproof enclosure (76 dB)
