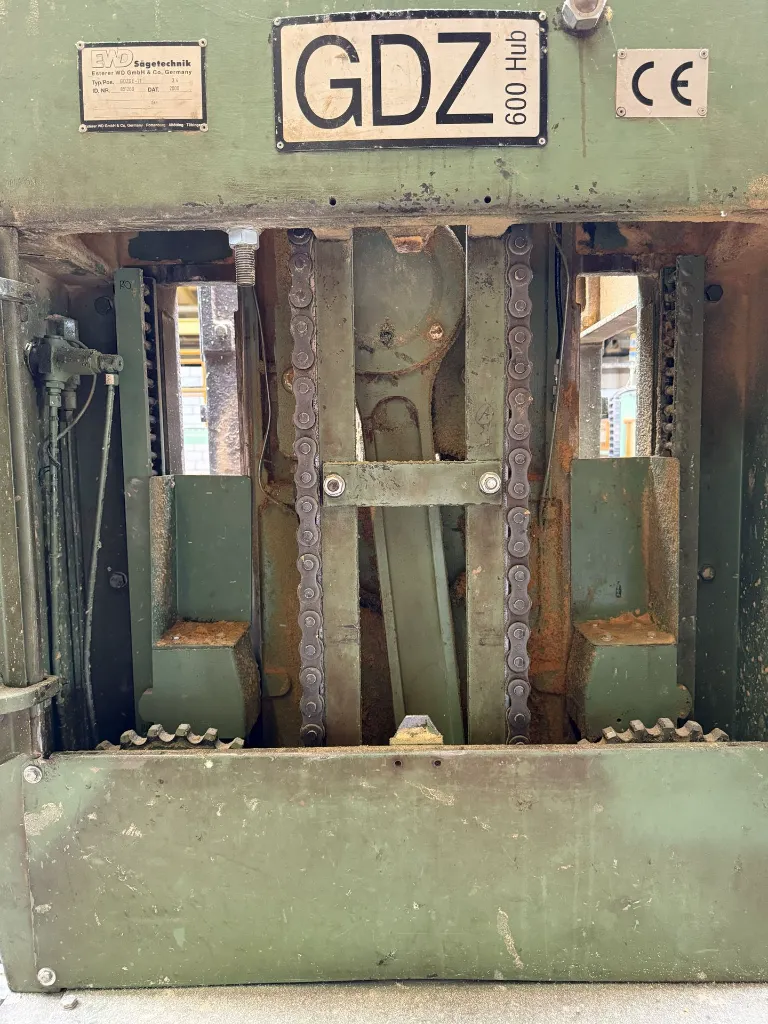

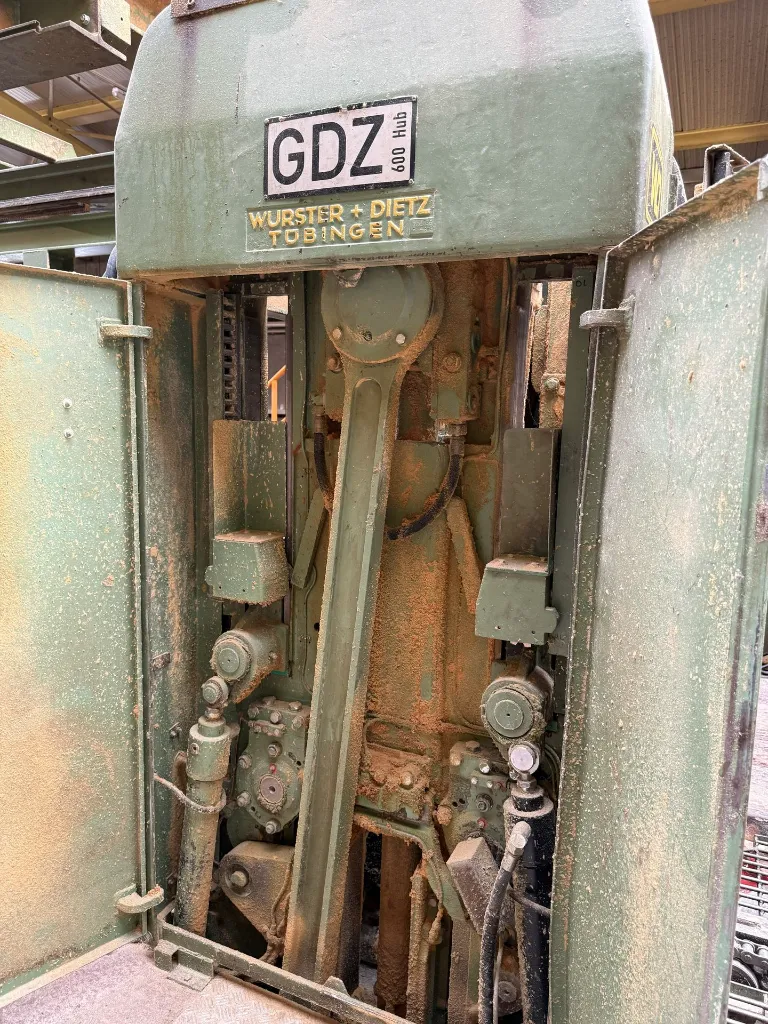

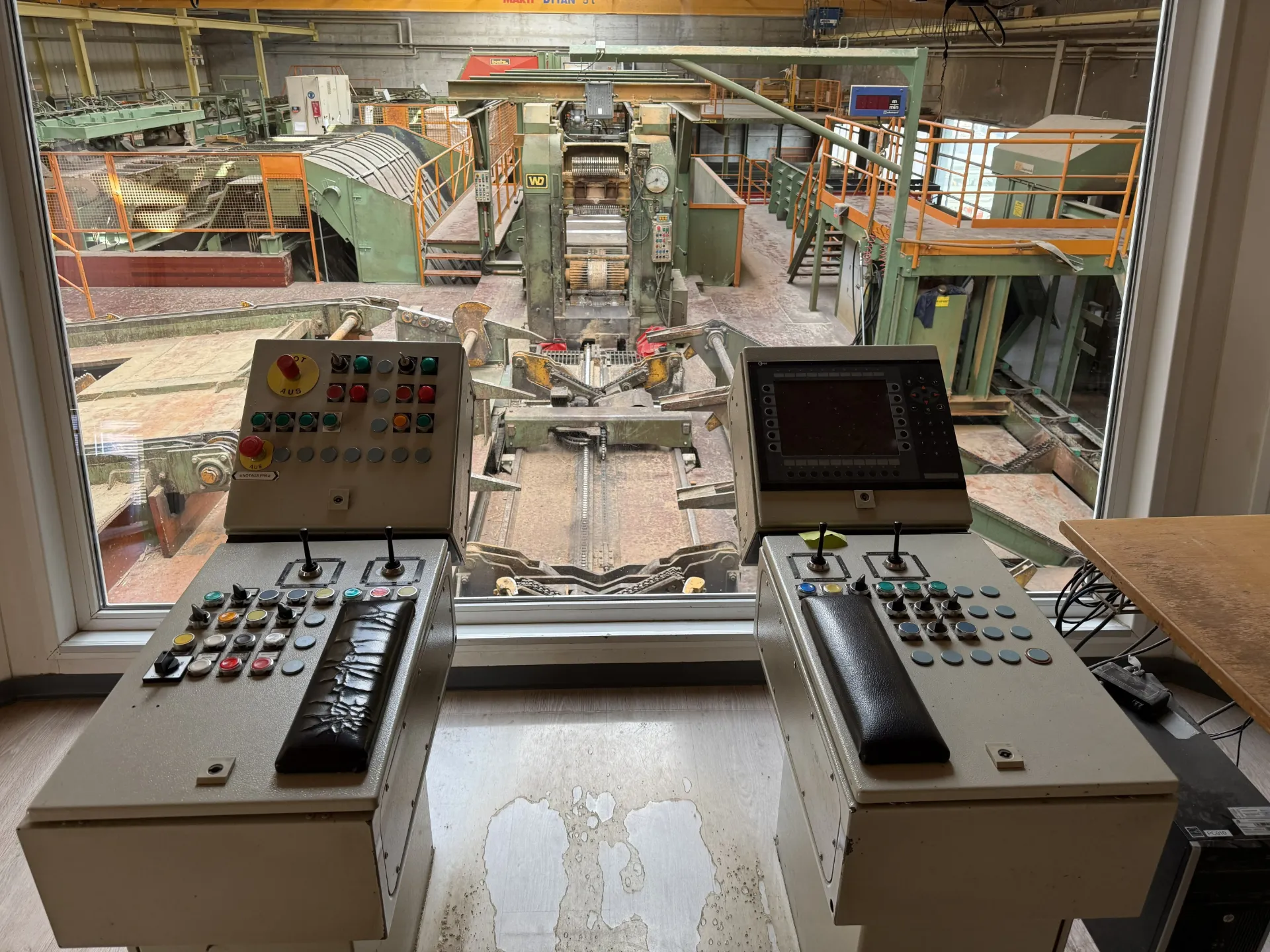

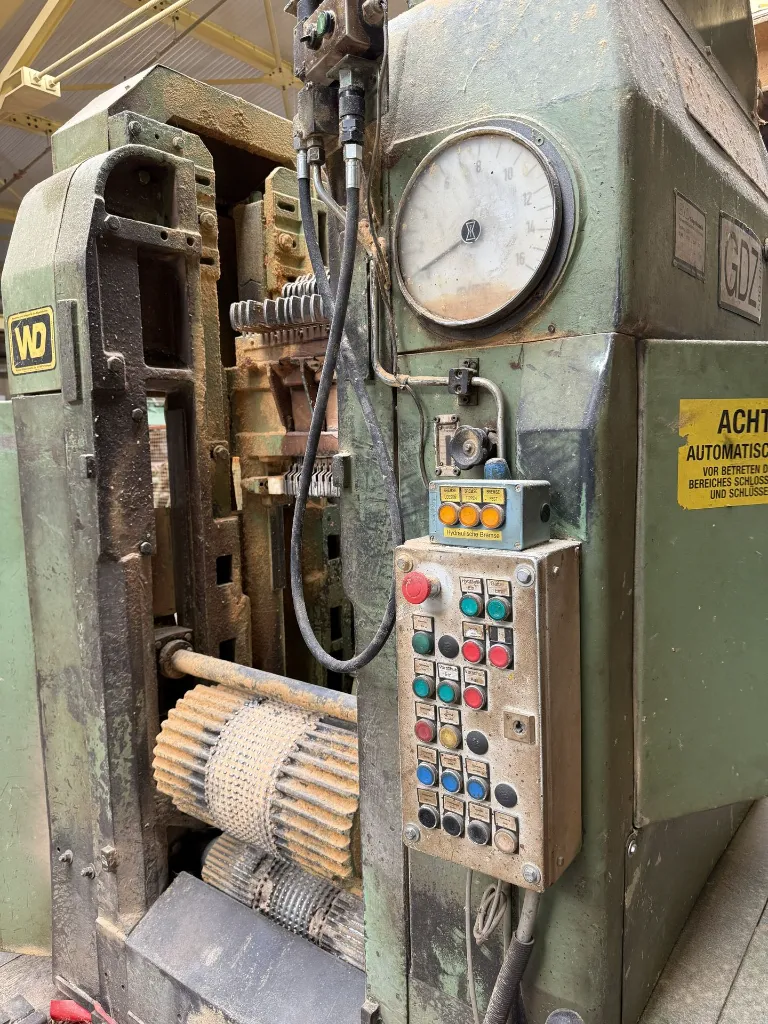

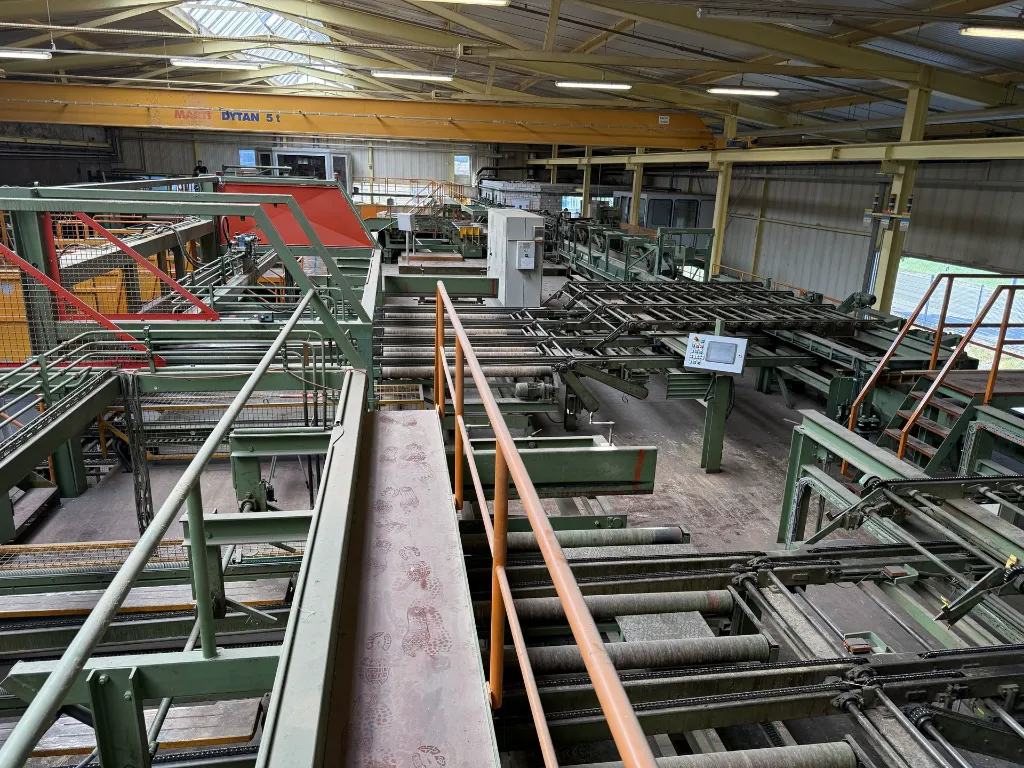

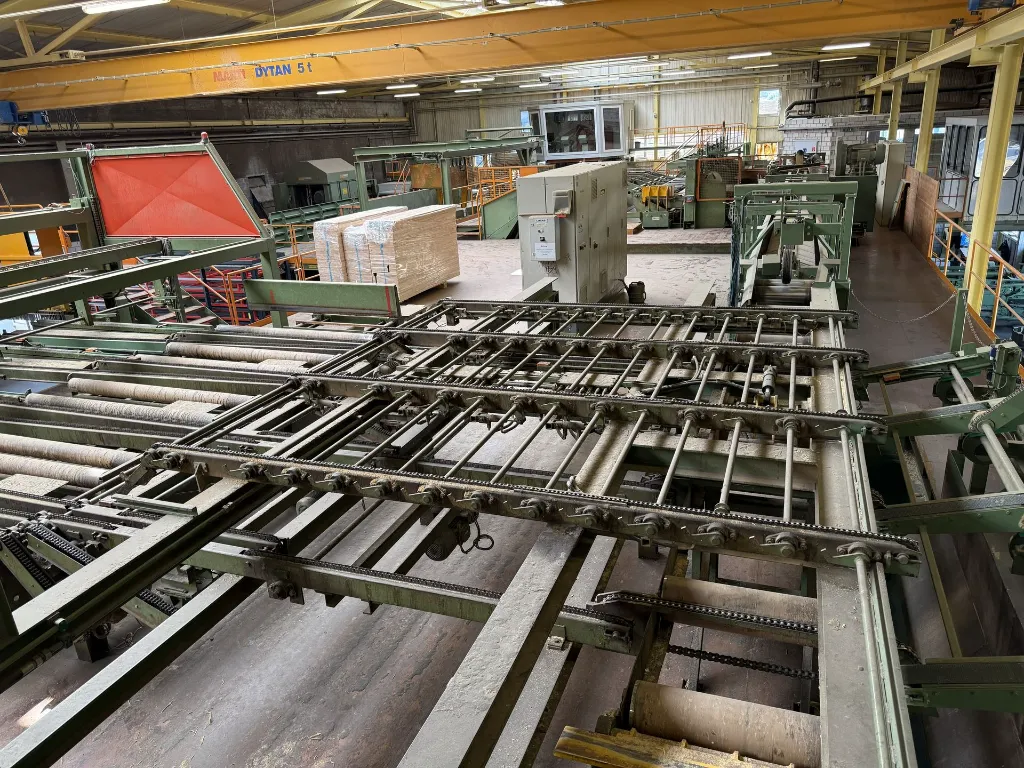

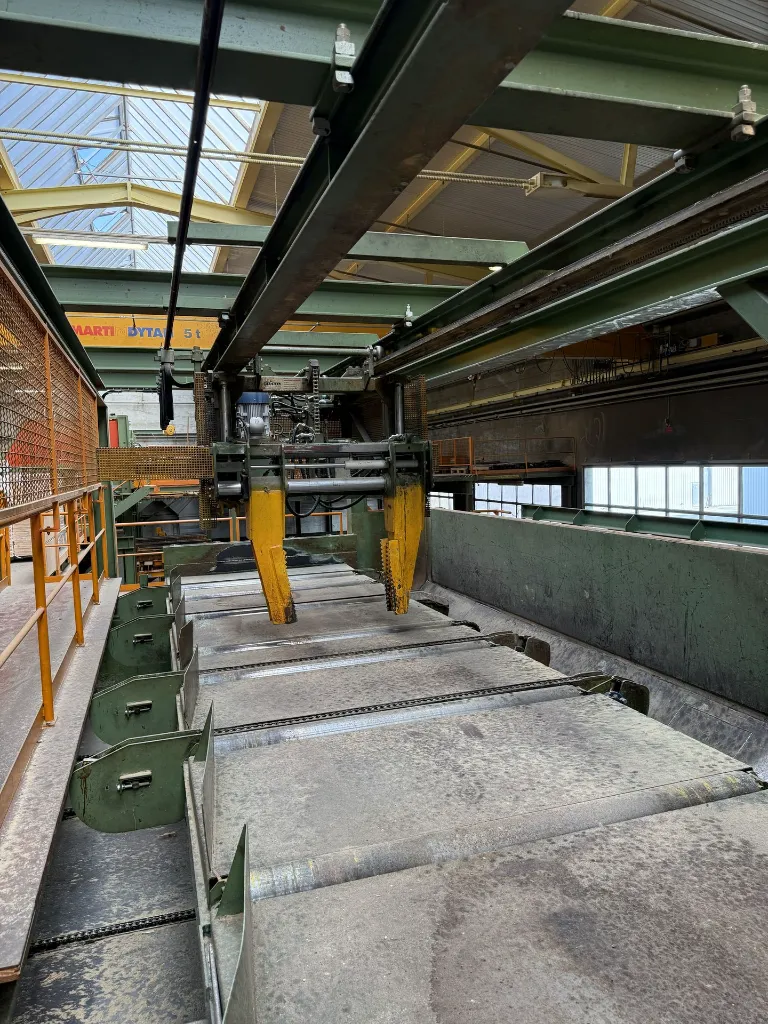

A complete sawing line from log feeding to the finished stacked sawn timber. The system comprises automatic log feeding, sawing using a high-performance EWD full-width saw, material transfer, the automatic edger and the fully automatic stacking and bundling system.
Key technical specifications
- Cut lengths: 2,500–6,000 mm
- Frame width: 710 mm
- Clearance height: 700 mm
- Saw stroke: 600 mm
- Gate speed: up to 320 rpm
- EWD H38 Gate Feeding
- EWD H38 Gate Feeding

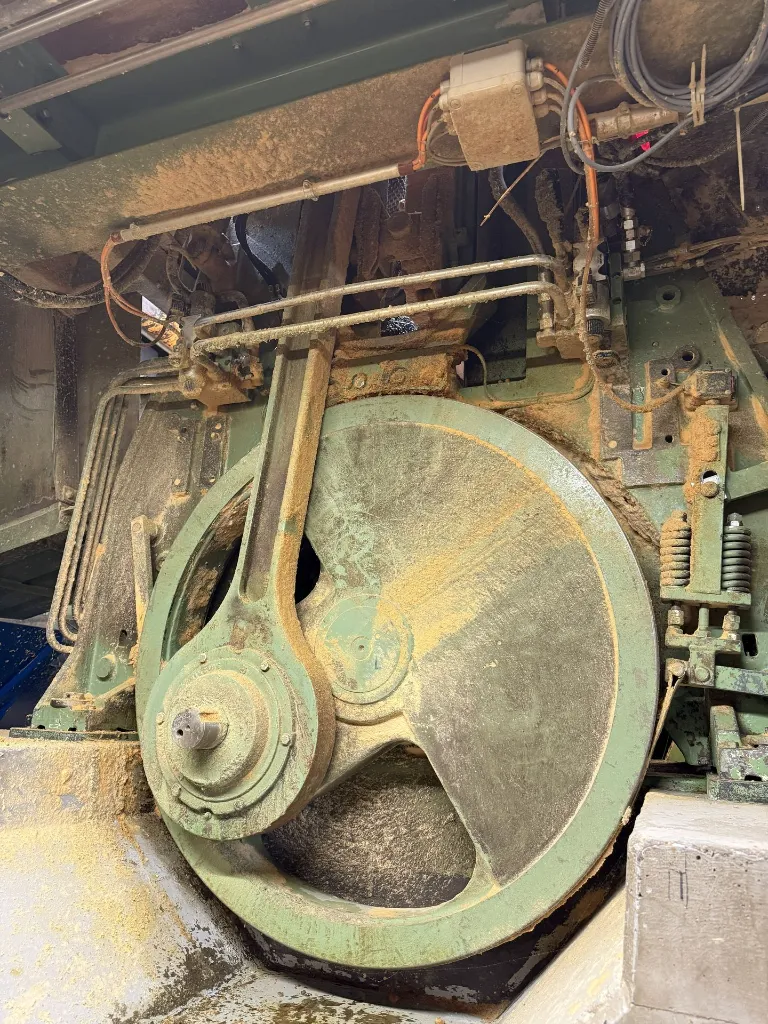

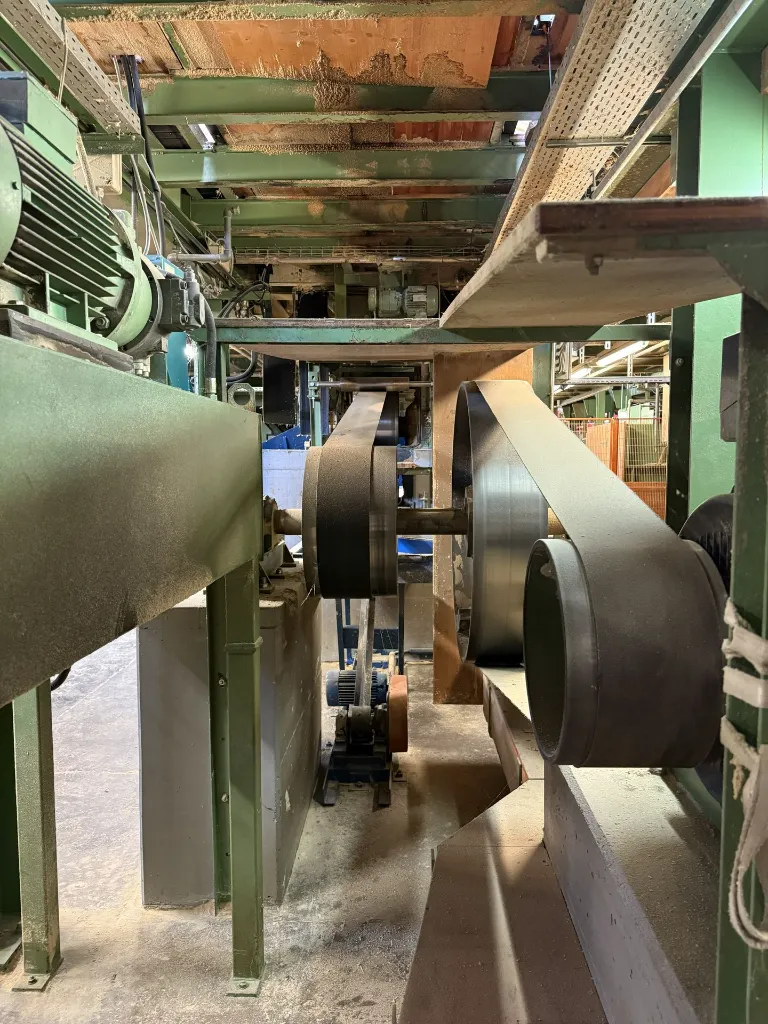

- Main drive: 160 kW

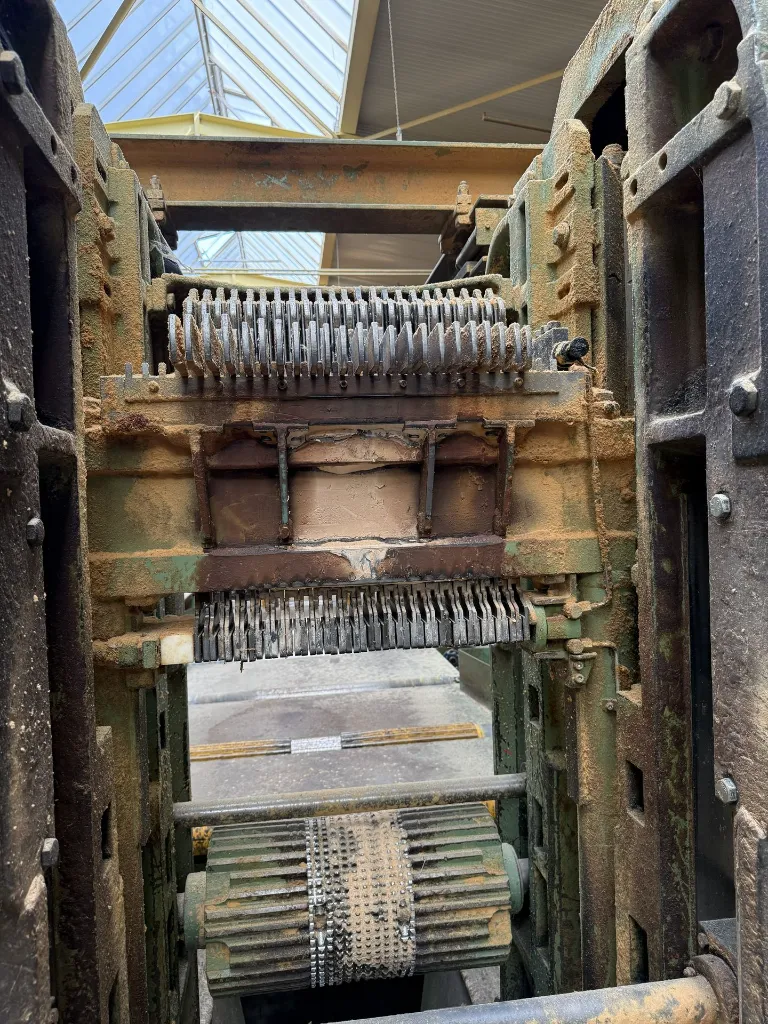

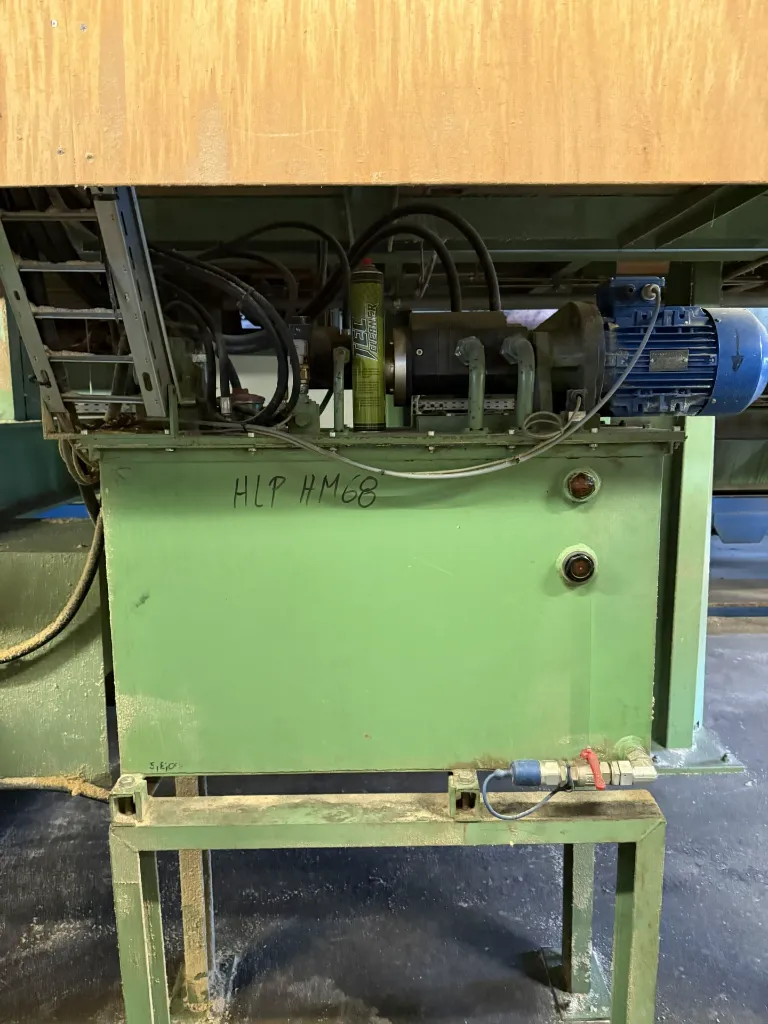

- Hydraulic blade clamping for up to 25 saw blades

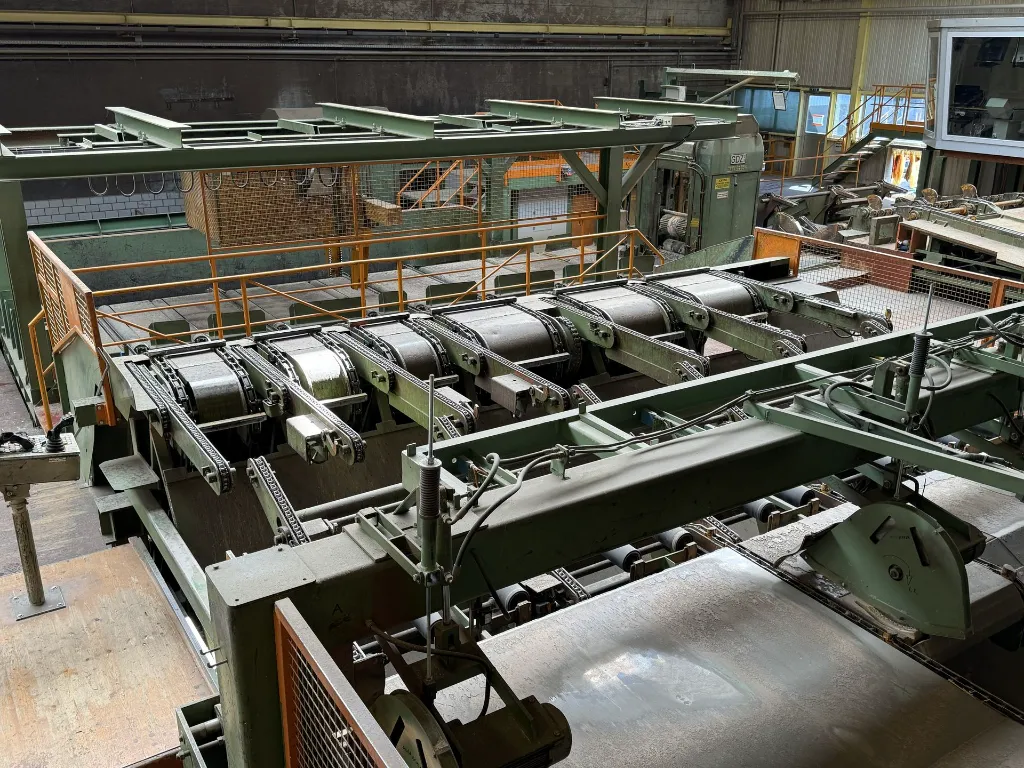

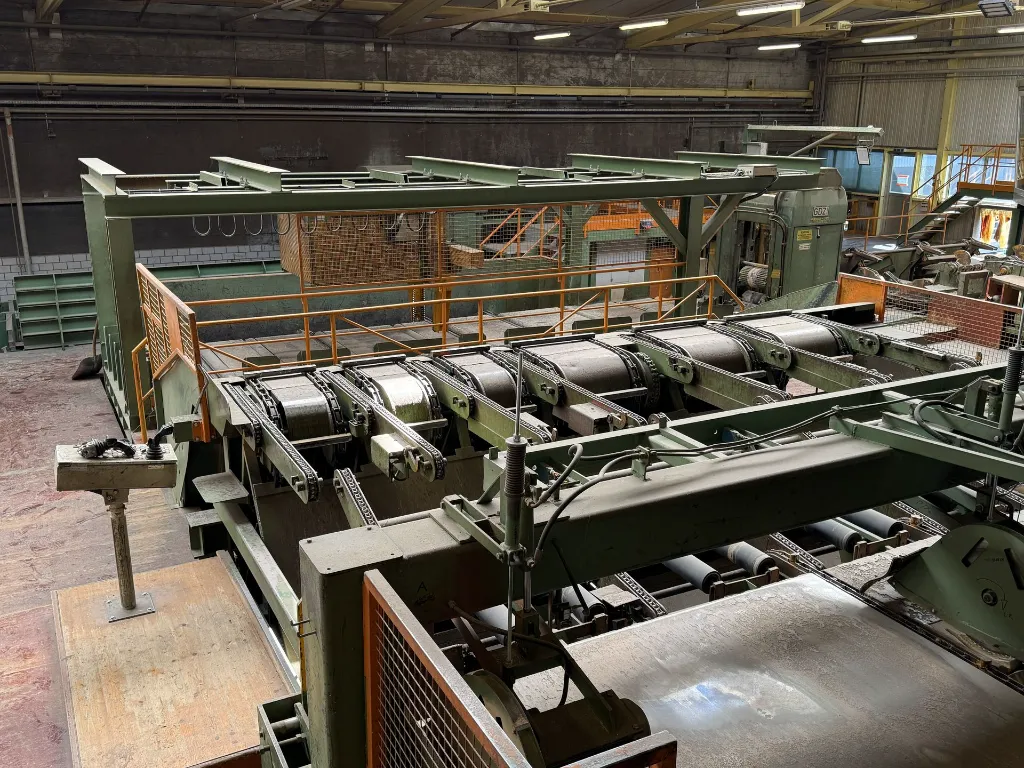

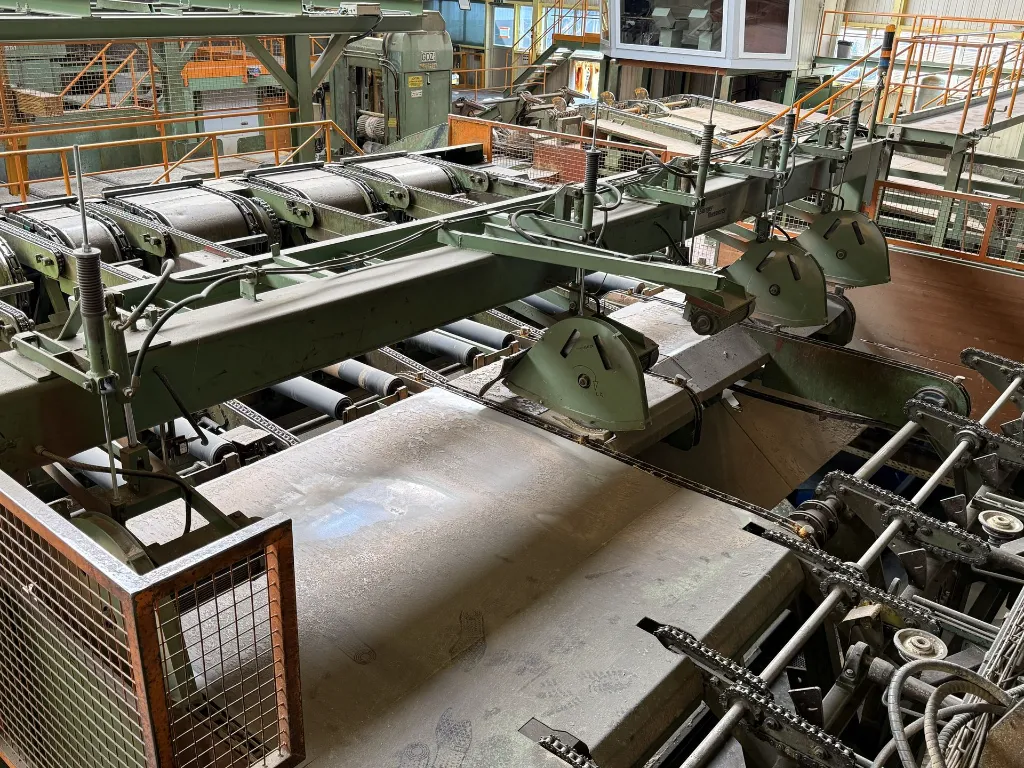

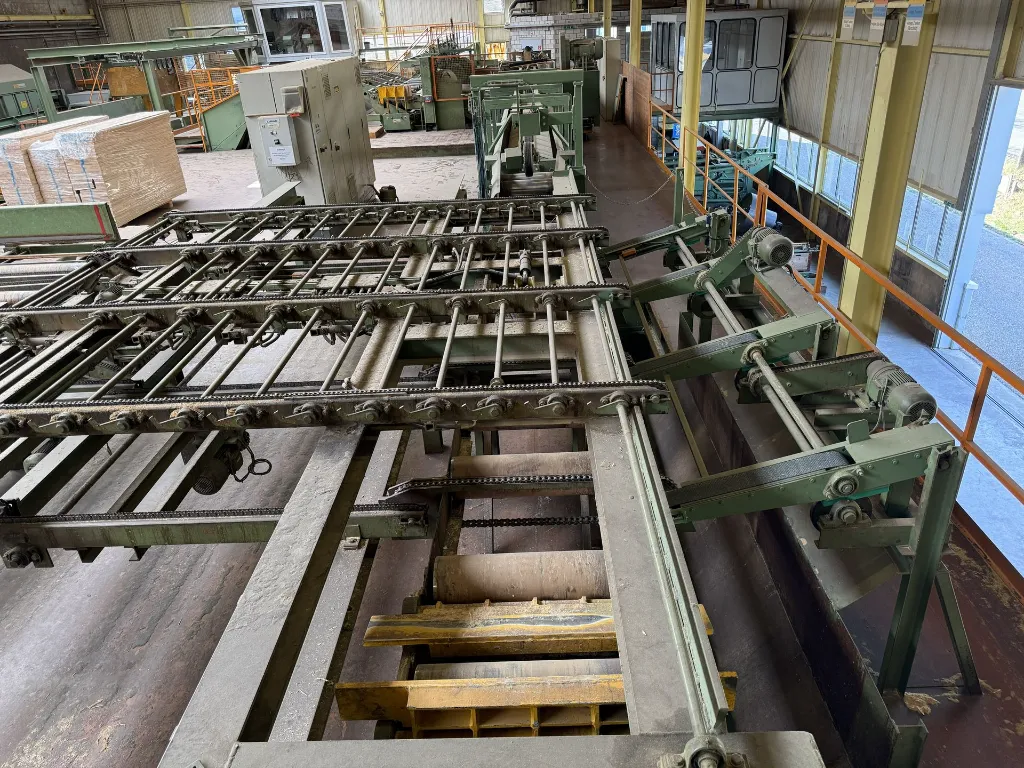

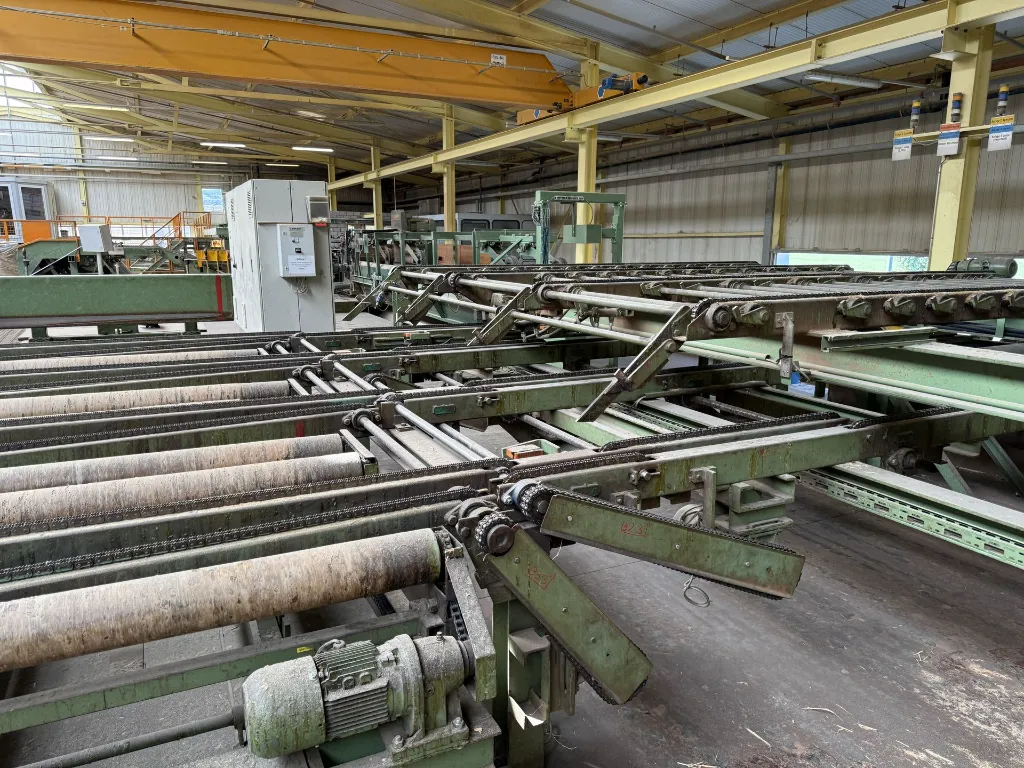

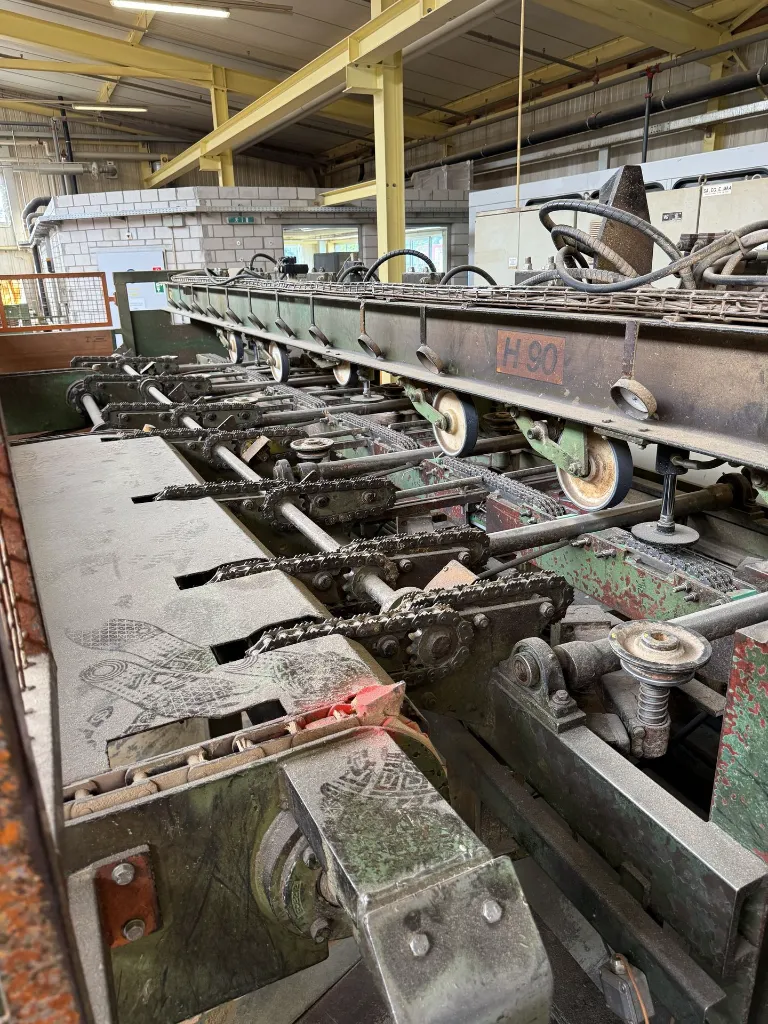

- Heckel Conveyor and Handling Technology

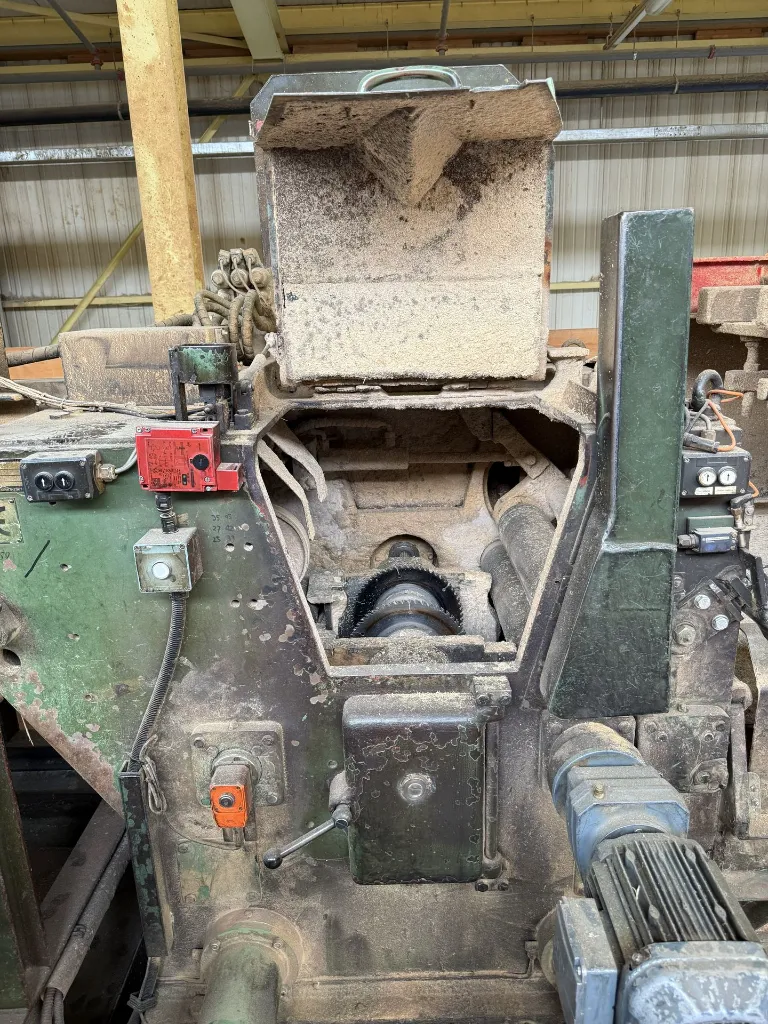

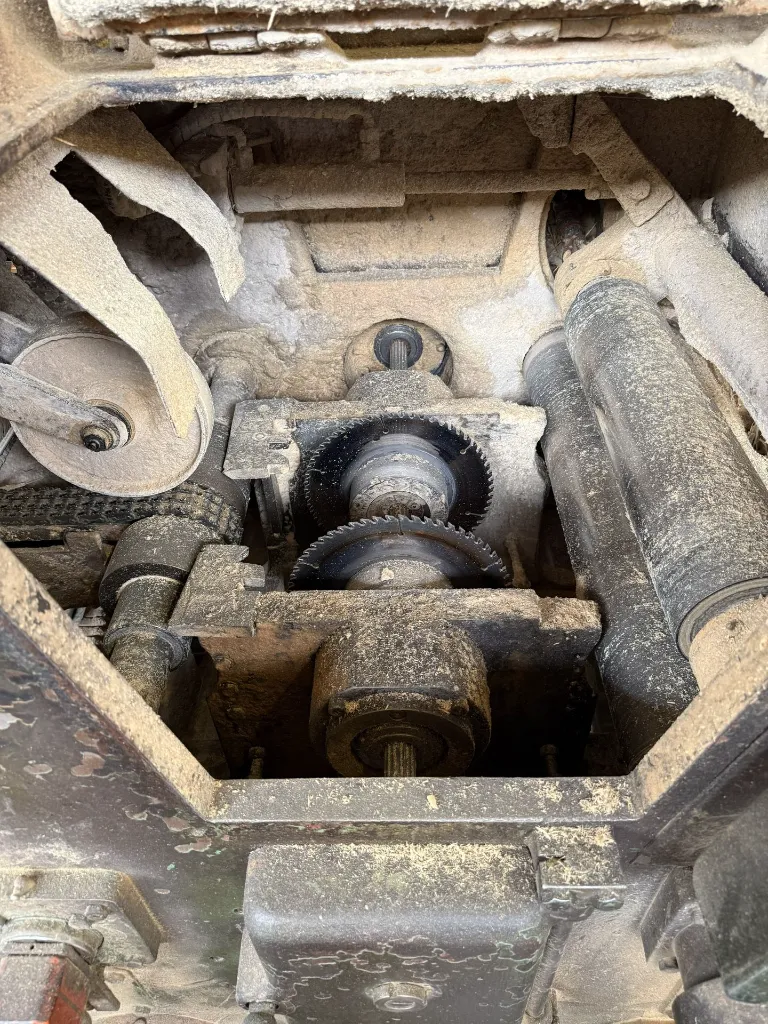

- FR 9 WD automatic edging machine with two movable saw units
- Cross-cutting system and centring and feeding unit with pre-measurement

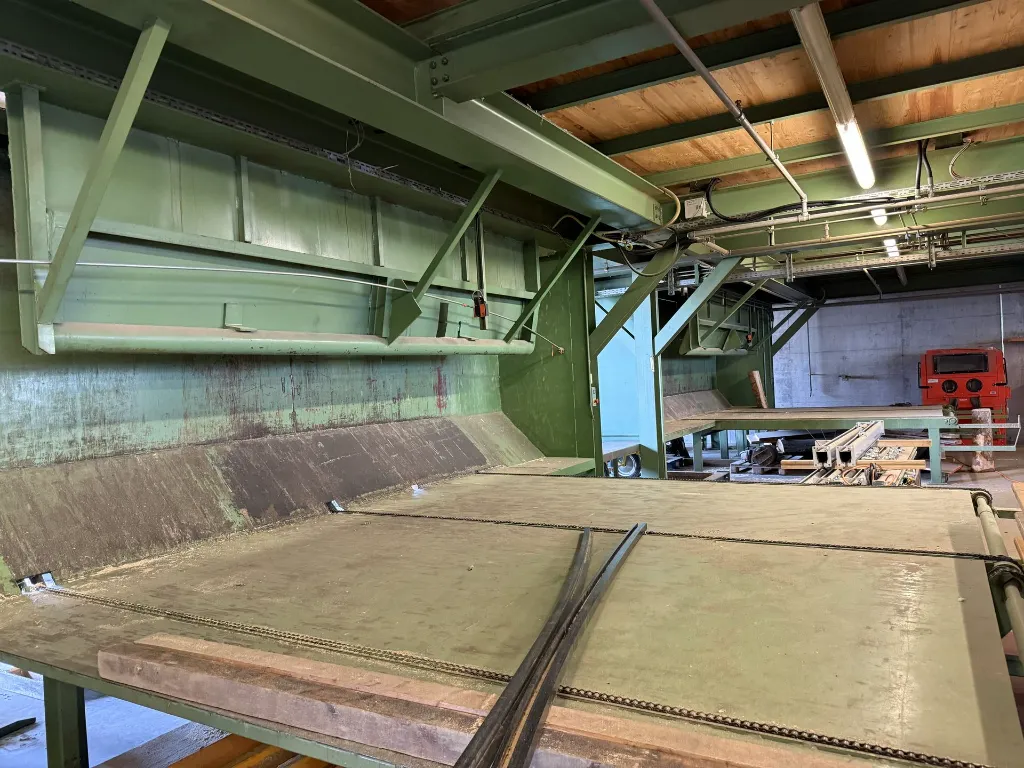

- Two fully automatic stacking and packaging systems
- Capacity of up to 24 boards per minute per stacking system
- Automatic layer formation, slat insertion and package transfer
Eine ausführliche Beschreibung des Systems und aller seiner Komponenten finden Sie in der beigefügten PDF-Datei.
