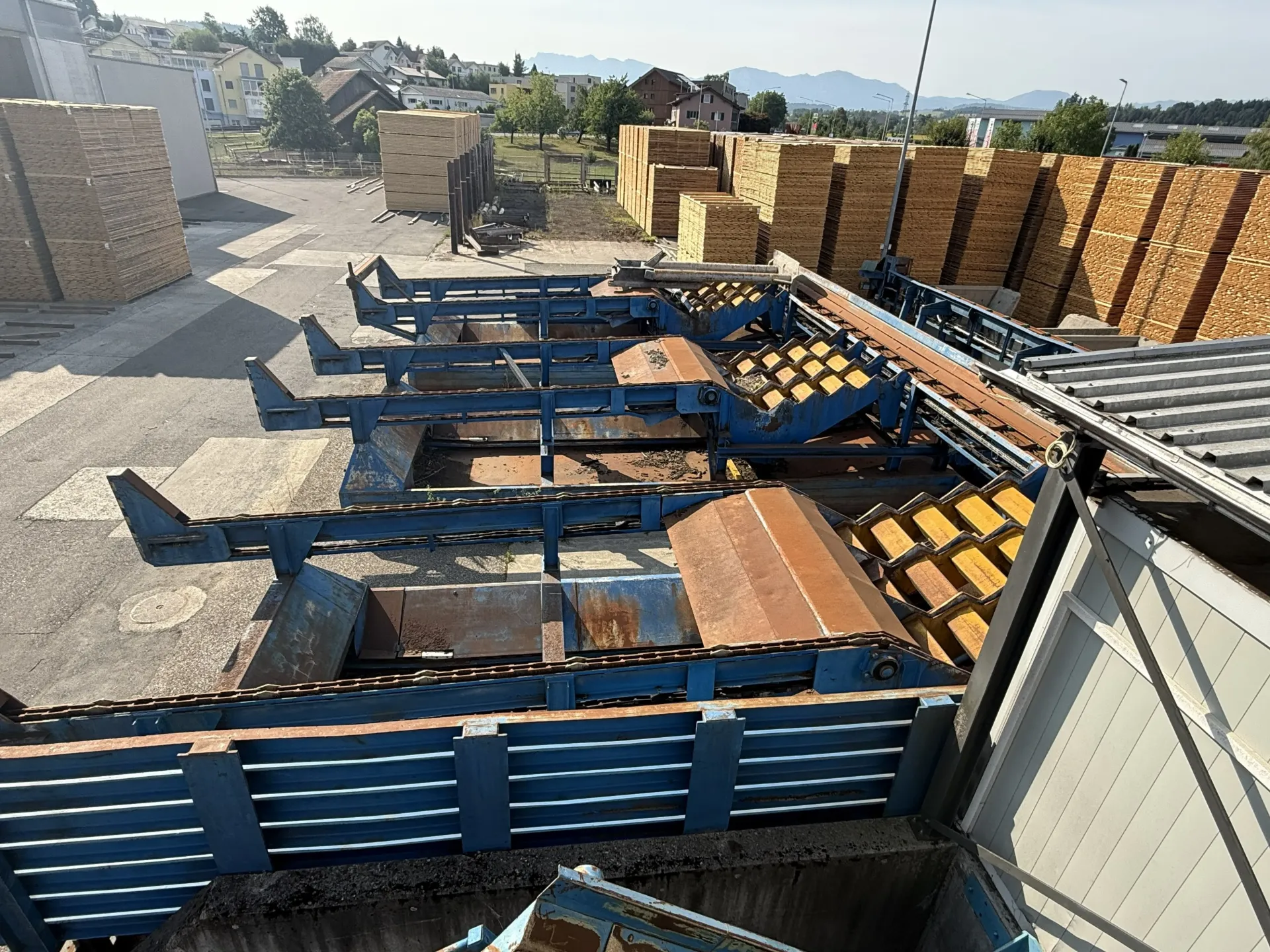

A complete round timber handling system, from the round timber inlet to handover to the sawing line. The system handles the automatic feeding, separation, trimming, metal detection, root end reduction, debarking, 3D measurement and sorting of the logs
Key technical specifications
- Capacity: approx. 30,000 m³ of round timber in single-shift operation
- Trunk diameter: approx. 160–660 mm
- Log lengths: 4,000–5,250 mm
- Custom lengths up to 6,100 mm
- Long timber up to approx. 20 m
- Herzog processor head with a 55-kW hydraulic power unit
- Cutting diameter up to approx. 700 mm
- Integrated metal detection
- Hobest Primus root-end reducer for trunk diameters up to 900 mm
- EWD ER 90 debarker with a rotor opening of 100–900 mm
- Rotor drive: 45 kW, frequency-controlled
- Feed speed during debarking: up to 30 m/min
- Calibratable Microtec 3D round timber scanner
- Sorting block conveyor with five hydraulic ejection stations
The re-feeding unit handles the automatic return, separation and realignment of the round timber for feeding into the saw frame. It comprises, amongst other things, an approximately 18-metre-long round timber feed conveyor, a four-stage steep conveyor, a 90° curved conveyor, a double-strand block conveyor, a cross conveyor and an integrated log turner.
The reloading unit can be purchased separately if required.
A detailed description of the system and all its components can be found in the attached PDF.
